RS40539/64

Name: RS40539/64
Brand: Dormer Pramet
SKU: DOR8882061
Price: 387.36 CAD
Availability: InStock

SKU DOR8882061

by Dormer Pramet

Primary Use: Possible Use:

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$387.36 - $387.36

$387.36

$387.36 - $387.36

$387.36

Sold in packs of: 1

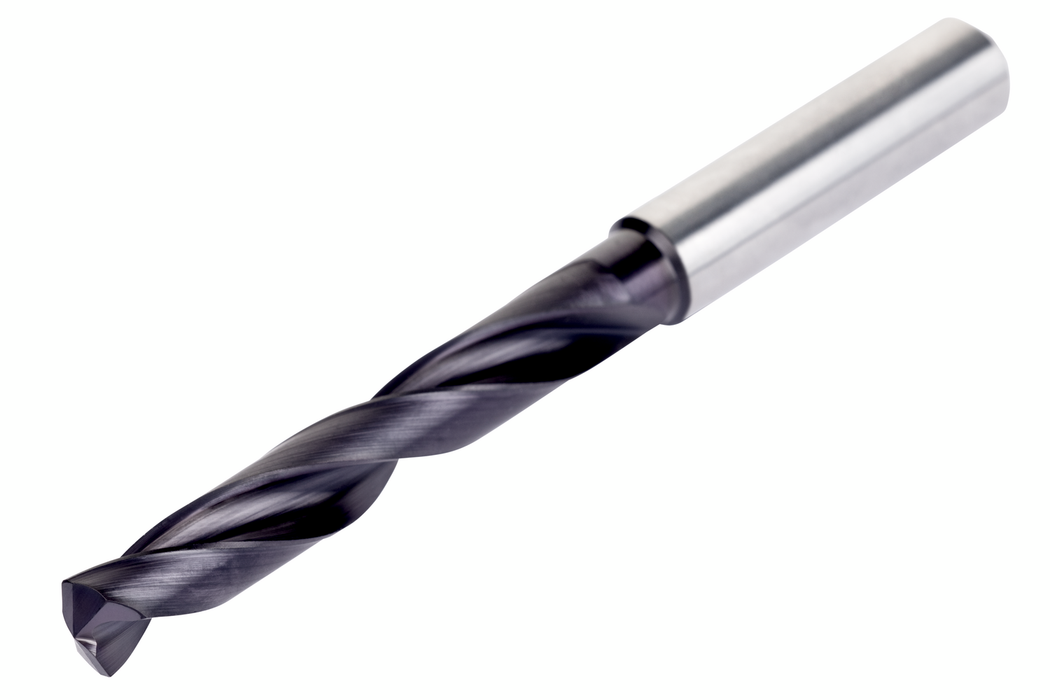

Cutting diameter 39/64 inches high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 16 mm, LCF 82 mm and OAL 133 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	RS40539/64
Grade	TiAlN/Top
Product Number	8882061
Product Family	RS405
Dimensions
Cutting Diameter — in (DC)	0.6094"
Cutting Diameter — mm (DC)	15.48 mm
Cutting Diameter — Fractional	39/64
Overall Length — in (OAL)	5.2362"
Overall Length — mm (OAL)	133.0 mm
Flute Length — in (LCF)	3.2283"
Flute Length — mm (LCF)	82.0 mm
Length × Diameter Ratio	9xD
Connection Dia. — in (DCON)	0.6299"
Connection Dia. — mm (DCON)	16.0 mm
Drill Point Angle (SIG)	140°
Tool Information
Shank	Cylindrical shank DIN 6535 HA
Through Coolant	No
Standard	DIN 6537
Reference Numbers
EDP Number	8882061
EAN	3603607341551

Material Group	Suitability
P — Steel and Cast Steel	Primary use
M — Stainless Steel	Possible use
K — Cast Iron	Primary use
N — Non-Ferrous Metals	Possible use
S — High Temperature Alloys	Possible use

File	Type	Download
RS40539/64 — 3D Model	STP	Download
RS40539/64 — 2D Model	DXF	Download
RS40539/64 — Line Drawing	PDF	Download
