S9543/16

S9543/16

SKU DOR8962003
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.01 - $41.01
$41.01
$41.01 - $41.01
$41.01

Sold in packs of: 1

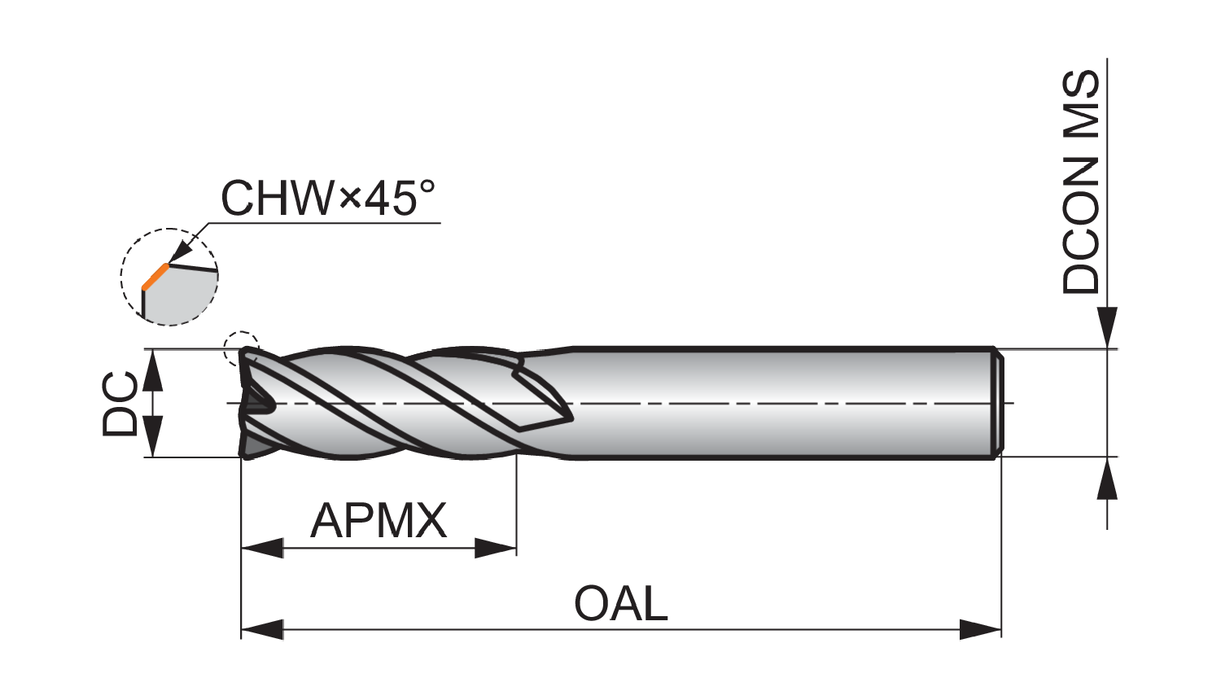

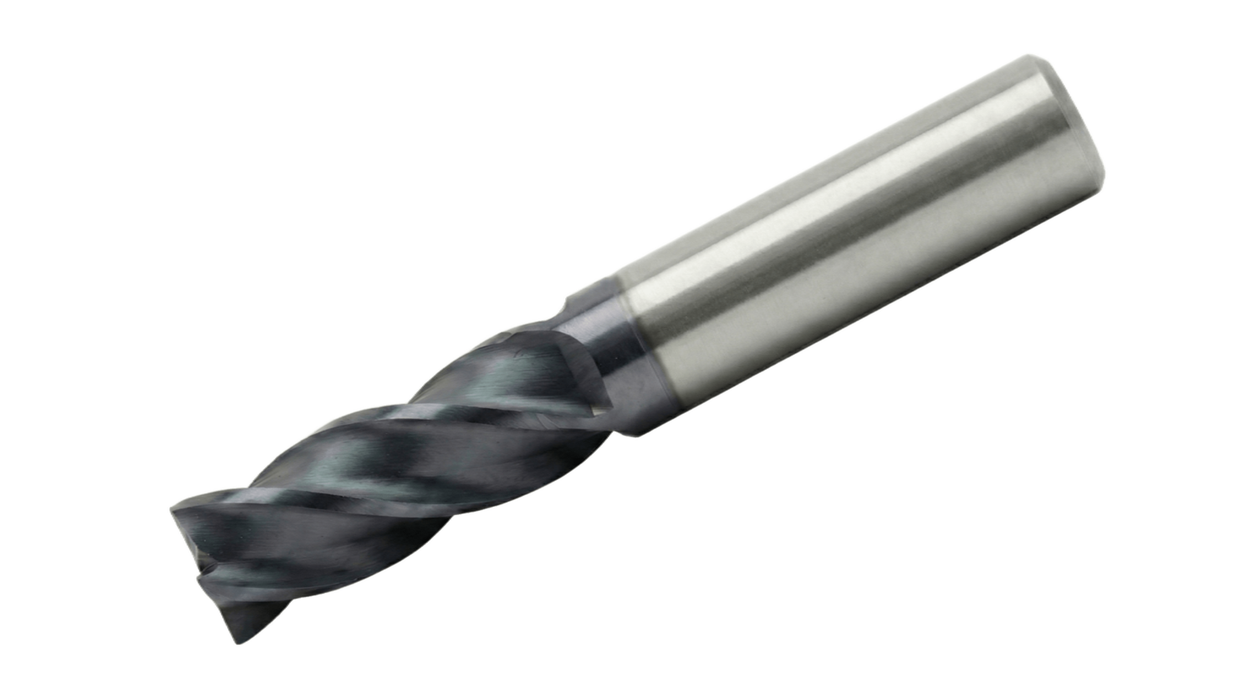

Round tool with cutting diameter 4.76 mm, corner chamfer 45°, maximum depth of cut 15.875 mm and OAL 50.8 mm. DCON MS 4.76 mm with Cylindrical shank. TiAlN coating. Suitable for M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9543/16
GradeTiAlN
Product Number8962003
Product FamilyS954
Insert Geometry
Depth of Cut Max — in (APMX)0.625"
Depth of Cut Max — mm (APMX)15.875 mm
Dimensions
Cutting Diameter — in (DC)0.188"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Length × Diameter Ratio11xD
Connection Dia. — in (DCON)0.188"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number8962003
EAN3603607423950
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
File Type Download
S9543/16 — 3D Model STP Download
S9543/16 — 2D Model DXF Download
S9543/16 — Line Drawing PDF Download
