S9728.0XR1.0

S9728.0XR1.0

SKU DOR8961928
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.14 - $58.14
$58.14
$58.14 - $58.14
$58.14

Sold in packs of: 1

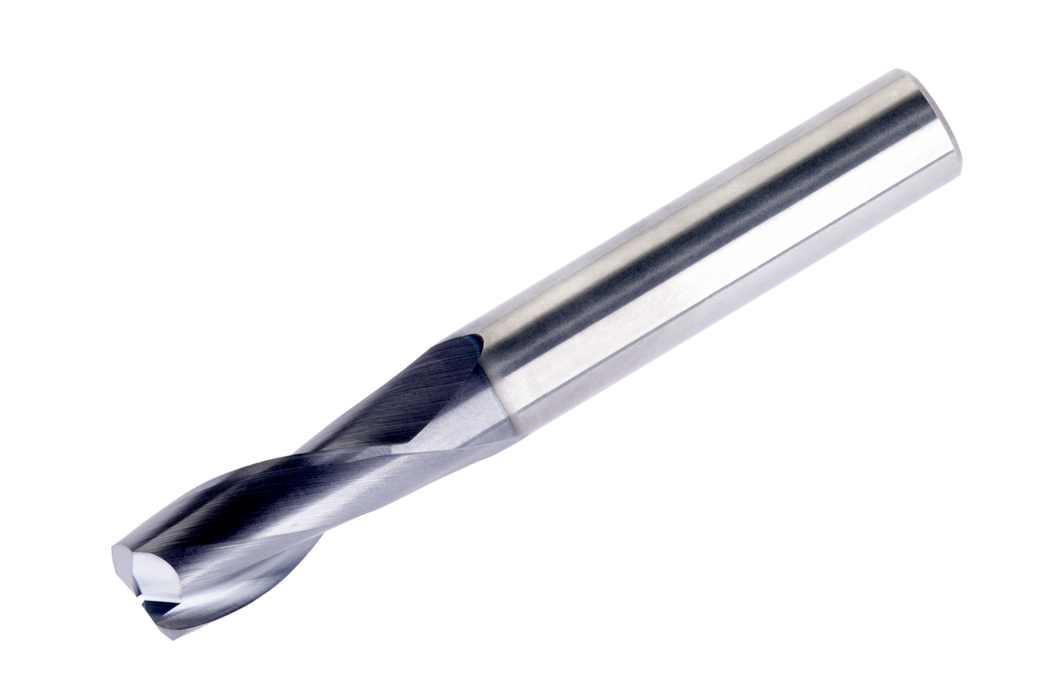

Round tool with cutting diameter 8 mm, maximum depth of cut 19 mm and OAL 63 mm. DCON MS 8 mm with Cylindrical shank DIN 6535 HA. TiAlN coating. Suitable for M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9728.0XR1.0
GradeTiAlN
Product Number8961928
Product FamilyS972

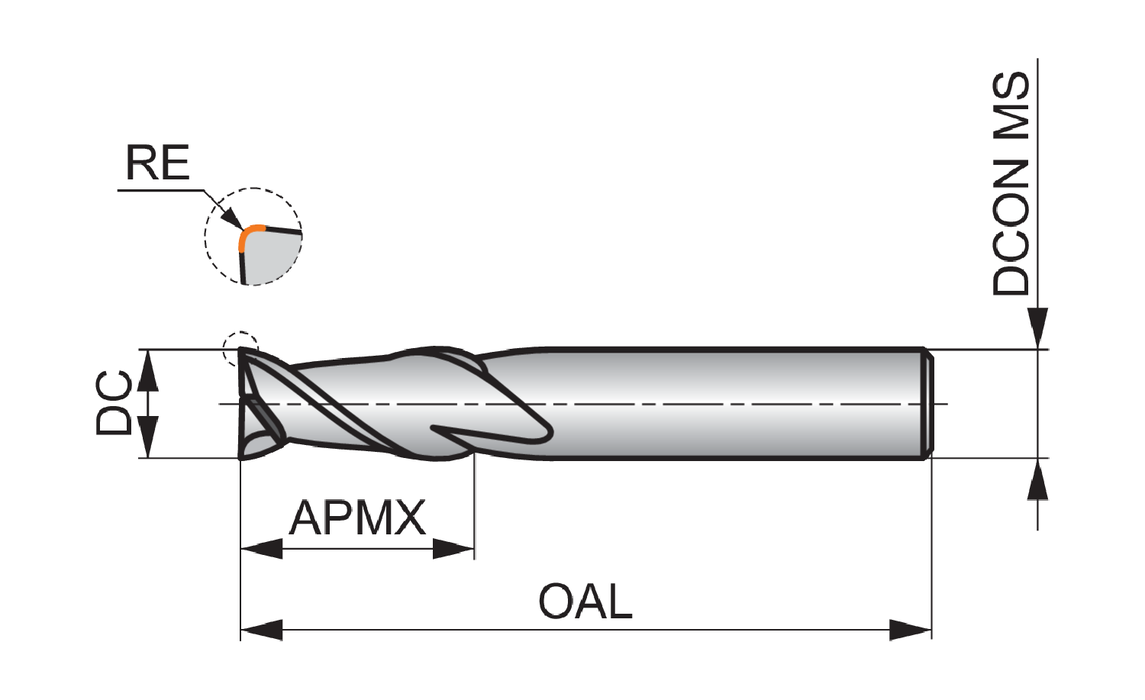

Insert Geometry
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio8xD
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardWork Norm
Reference Numbers
EDP Number8961928
EAN3603607423202
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
File Type Download
S9728.0XR1.0 — 3D Model STP Download
S9728.0XR1.0 — 2D Model DXF Download
S9728.0XR1.0 — Line Drawing PDF Download
