S9861

S9861

SKU DOR8962101
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$301.29 - $301.29
$301.29
$301.29 - $301.29
$301.29

Sold in packs of: 1

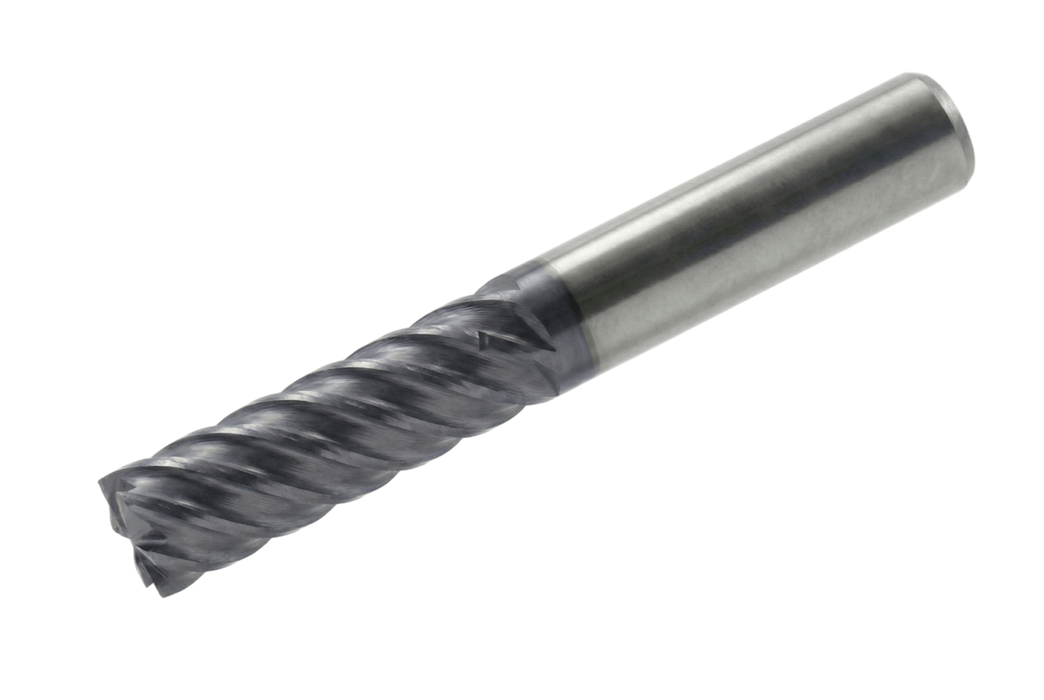

Round tool with cutting diameter 25.4 mm, maximum depth of cut 57.15 mm and OAL 127 mm. DCON MS 25.4 mm with Cylindrical shank DIN 6535 HA. TiAlN coating. Suitable for M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content).

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S9861
GradeTiAlN
Product Number8962101
Product FamilyS986
Insert Geometry

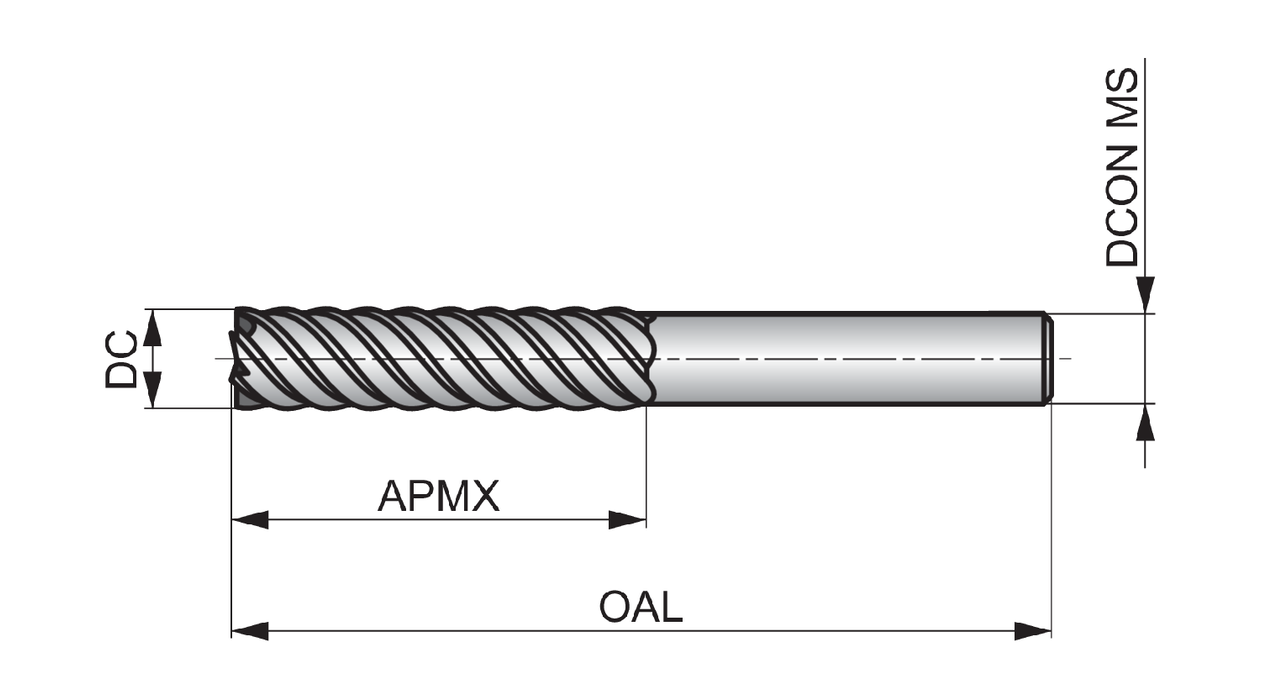

Depth of Cut Max — in (APMX)2.25"
Depth of Cut Max — mm (APMX)57.15 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Length × Diameter Ratio5xD
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)6
Helix Angle (FHA)45.0°
Tool Information
ShankCylindrical shank DIN 6535 HA
StandardWork Norm
Reference Numbers
EDP Number8962101
EAN3603607424933
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
File Type Download
S9861 — 3D Model STP Download
S9861 — 2D Model DXF Download
S9861 — Line Drawing PDF Download
