SCMT 1268-OR:T9425

SCMT 1268-OR:T9425

SKU DOR8986039
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$127.86 - $127.86
$127.86
$127.86 - $127.86
$127.86

Sold in packs of: 2

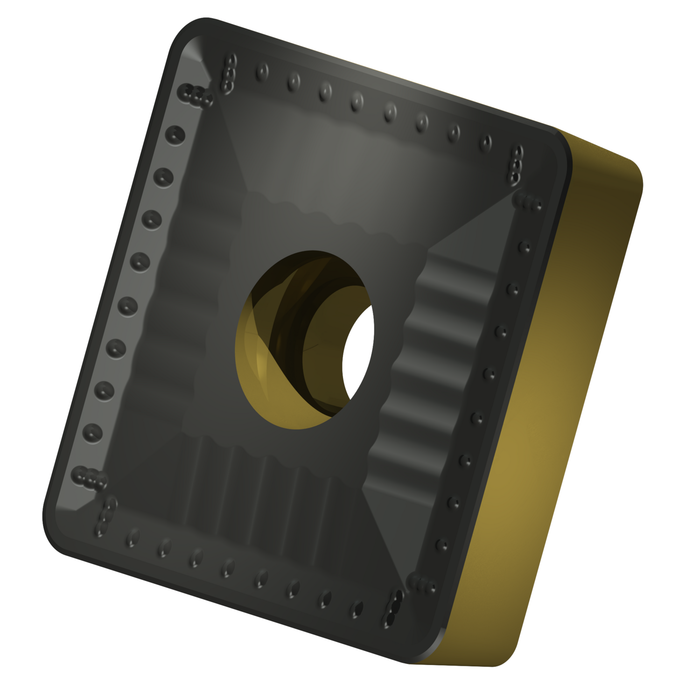

Single-sided Positive turning insert, S - square, size 38 with corner radius 3.2 mm. Combination of chipbreaker OR chip breaker is robust and the first choice for heavy roughing of Stainless steels. It features positive rake angle and negative/stable, extra-wide double T-land. It's also suitable for Steels, Cast irons, and conditionally for Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCMT 1268-OR:T9425
GradeT9425
Chipbreaker (CBMD)OR_
Product Number8986039
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)1.5"
Inscribed Circle Dia. — mm (IC)38.1 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.525 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)0.945"
Depth of Cut Max — mm (APMX)24.0 mm
Tool Information
Tool DesignSC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986039
EAN3603604778442
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download

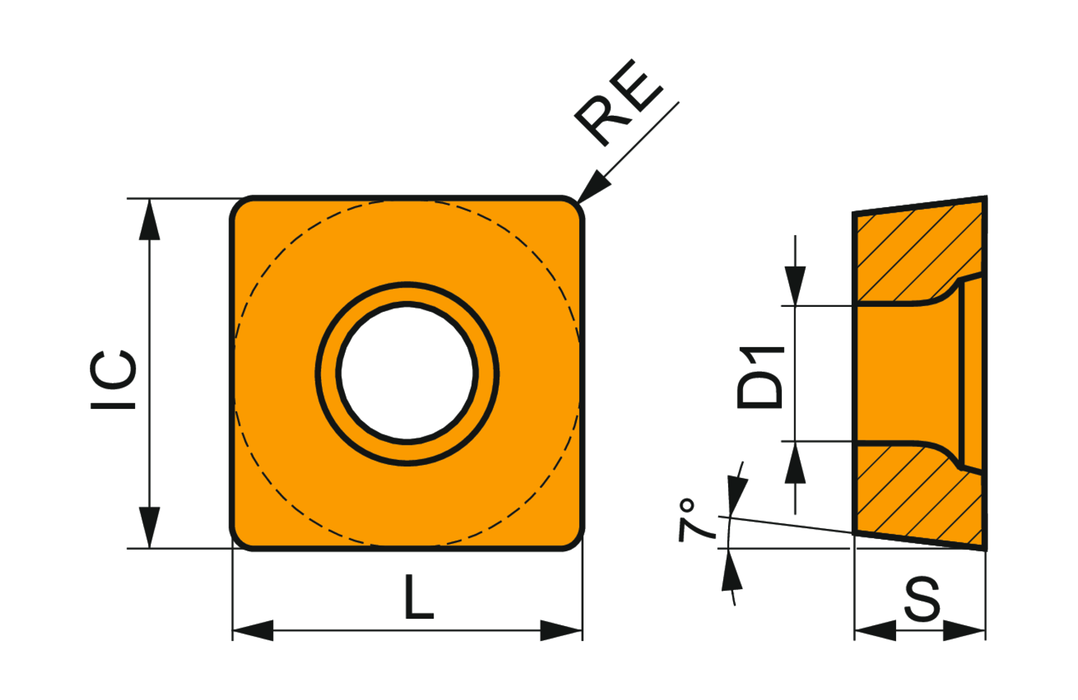

SCMT 1268-OR:T9425 — Line Drawing PDF Download
