SCMT 432-FM:T9425

SCMT 432-FM:T9425

SKU DOR8986030
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.93 - $19.93
$19.93
$19.93 - $19.93
$19.93

Sold in packs of: 10

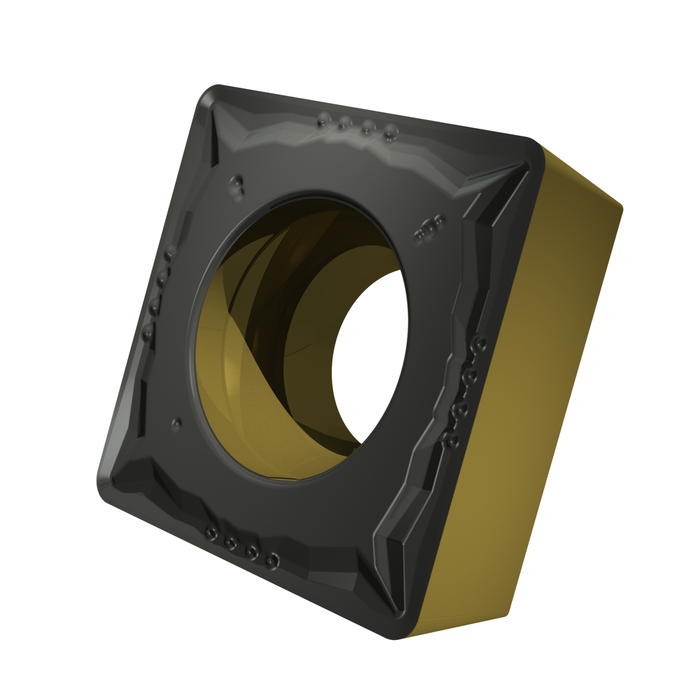

Single-sided Positive turning insert, S - square, size 12 with corner radius 0.8 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels. It features positive rake angle and positive, narrow T-land. It's also suitable for Stainless steels, and conditionally for Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCMT 432-FM:T9425
GradeT9425
Chipbreaker (CBMD)FM
Product Number8986030
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Tool DesignSC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986030
EAN3603604778350
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
File Type Download

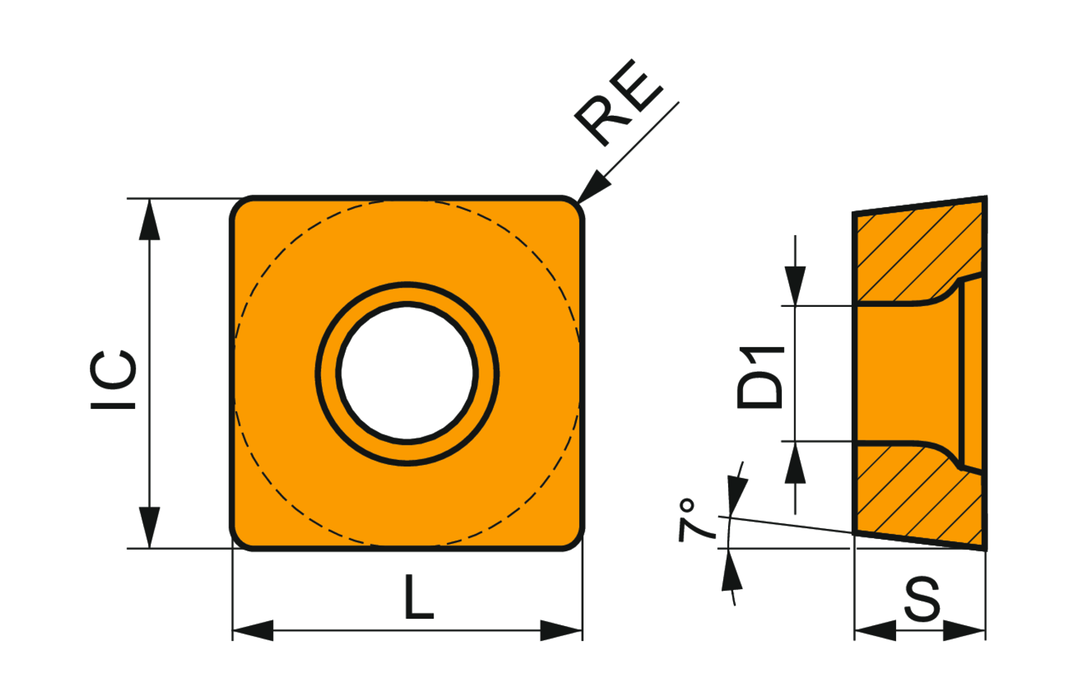

SCMT 432-FM:T9425 — Line Drawing PDF Download
