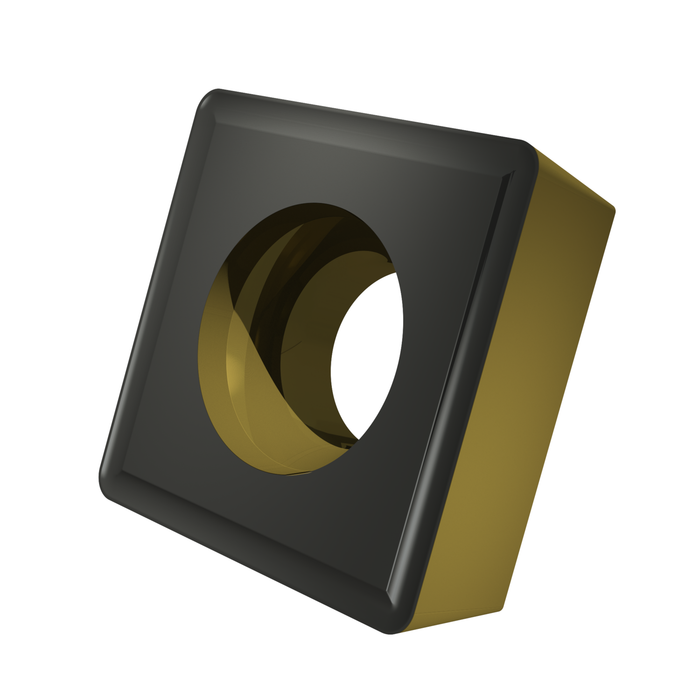

SCMT 432-RF:T9425
SCMT 432-RF:T9425
SCMT 432-RF:T9425
SCMT 432-RF:T9425

SCMT 432-RF:T9425

SKU DOR8986031
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.93 CAD - $19.93 CAD
$19.93 CAD
$19.93 CAD - $19.93 CAD
$19.93 CAD

Sold in packs of: 10
Single-sided Positive turning insert, S - square, size 12 with corner radius 0.8 mm. Combination of chipbreaker RF chip breaker is robust and the first choice for medium machining of Cast irons. It features slightly positive rake angle and stable, moderate T-land. It's also suitable for Steels, and conditionally for Stainless steels and Hard materials. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SCMT 432-RF:T9425
GradeT9425
Chipbreaker (CBMD)RF
Product Number8986031
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Tool DesignSC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986031
EAN3603604778367
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
File Type Download
SCMT 432-RF:T9425 — Line Drawing PDF Download
