SNMA 544S:T5405

SNMA 544S:T5405

SKU DOR8984979
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 - $22.29
$22.29
$22.29 - $22.29
$22.29

Sold in packs of: 10

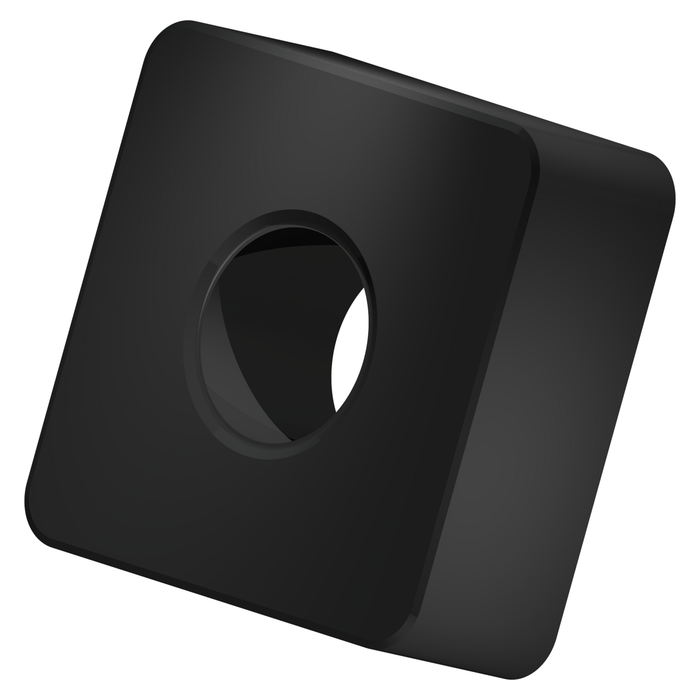

Double-sided Negative turning insert, S - square, size 15 with corner radius 1.6 mm. Combination of chipbreaker .NMA..S flat insert is designed for medium machining of Cast irons. It features neutral rake angle and negative, moderate T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMA 544S:T5405
GradeT5405
Chipbreaker (CBMD)No chipbreaker
Product Number8984979
Product FamilySNMA
Insert Geometry
Insert DesignSNMA
Insert Shape Code (SC)S - square
Insert Geometry
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Tool DesignSN
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8984979
EAN3603604772860
Material Group Suitability
K — Cast Iron Primary use
File Type Download

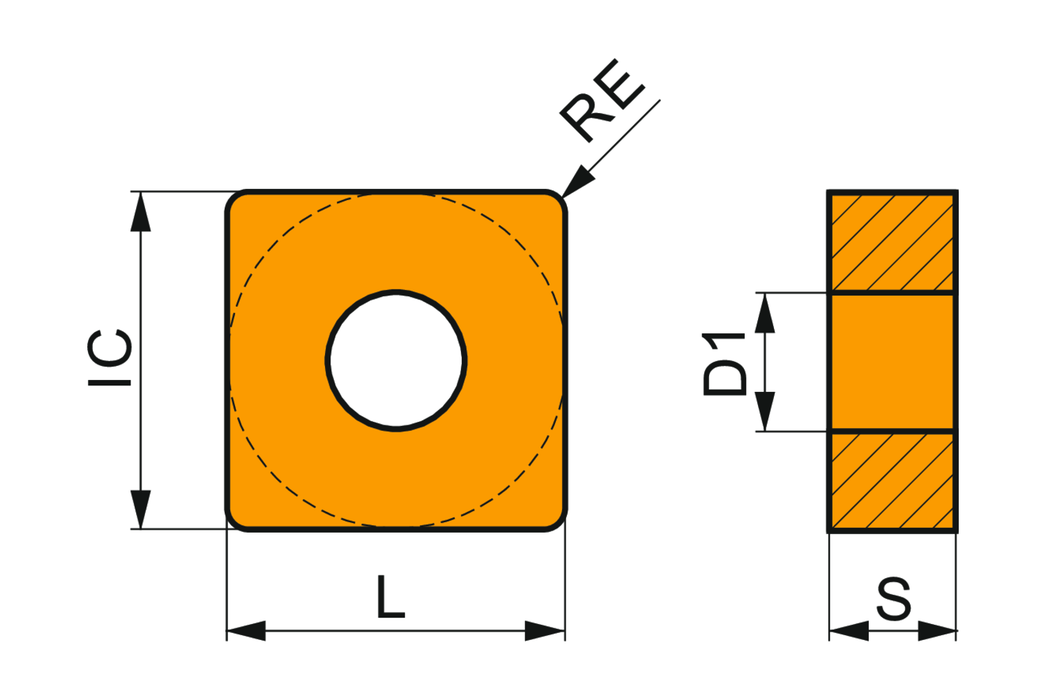

SNMA 544S:T5405 — Line Drawing PDF Download
