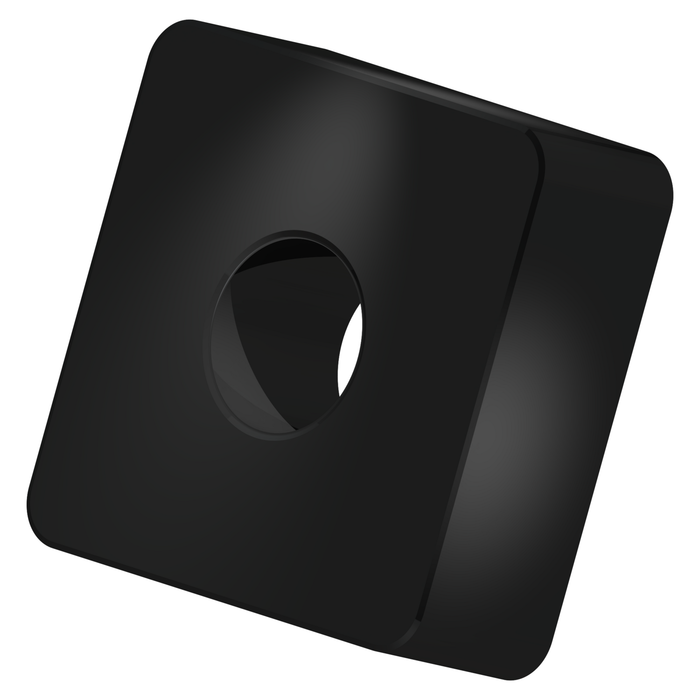

SNMA 866S:T5405

SNMA 866S:T5405

SKU DOR8984986
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.86 - $61.86
$61.86
$61.86 - $61.86
$61.86

Sold in packs of: 10

Double-sided Negative turning insert, S - square, size 25 with corner radius 2.4 mm. Combination of chipbreaker .NMA..S flat insert is designed for medium machining of Cast irons. It features neutral rake angle and negative, moderate T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMA 866S:T5405
GradeT5405
Chipbreaker (CBMD)No chipbreaker
Product Number8984986
Product FamilySNMA
Insert Geometry
Insert DesignSNMA
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.525 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Tool DesignSN
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8984986
EAN3603604772938
Material Group Suitability
K — Cast Iron Primary use
File Type Download
SNMA 866S:T5405 — Line Drawing PDF Download
