SNMG 322-M:T9425

SNMG 322-M:T9425

SKU DOR8985665
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.71 - $9.71
$9.71
$9.71 - $9.71
$9.71

Sold in packs of: 10

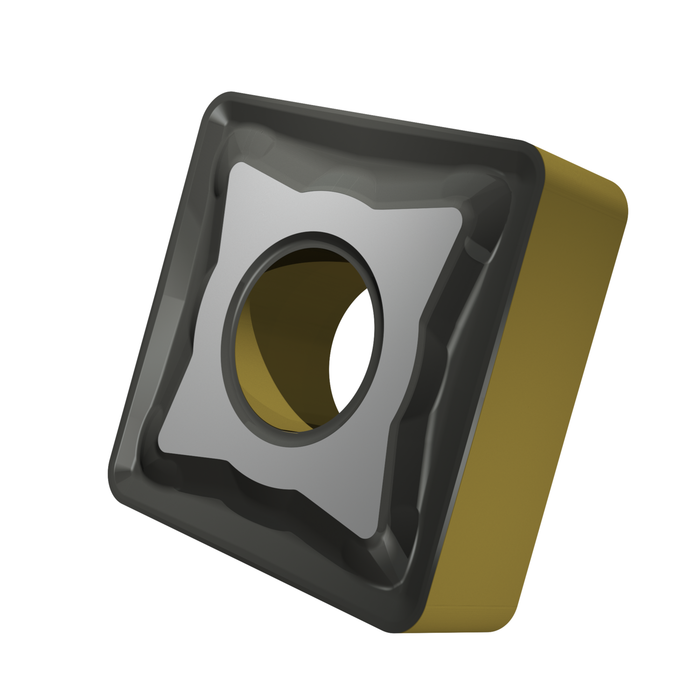

Double-sided Negative turning insert, S - square, size 9 with corner radius [ISO_CornerRadius_MET_NUM] mm. Combination of chipbreaker M chip breaker is versatile and the first choice for medium machining of Cast irons. It features positive rake angle and negative/stable, moderate T-land. It's also suitable for Steels, and conditionally for Hard materials. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMG 322-M:T9425
GradeT9425
Chipbreaker (CBMD)M
Product Number8985665
Product FamilySNMG
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)S - square
Insert Geometry
Tool Information
Tool DesignSN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985665
EAN3603604775236
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Primary use
File Type Download

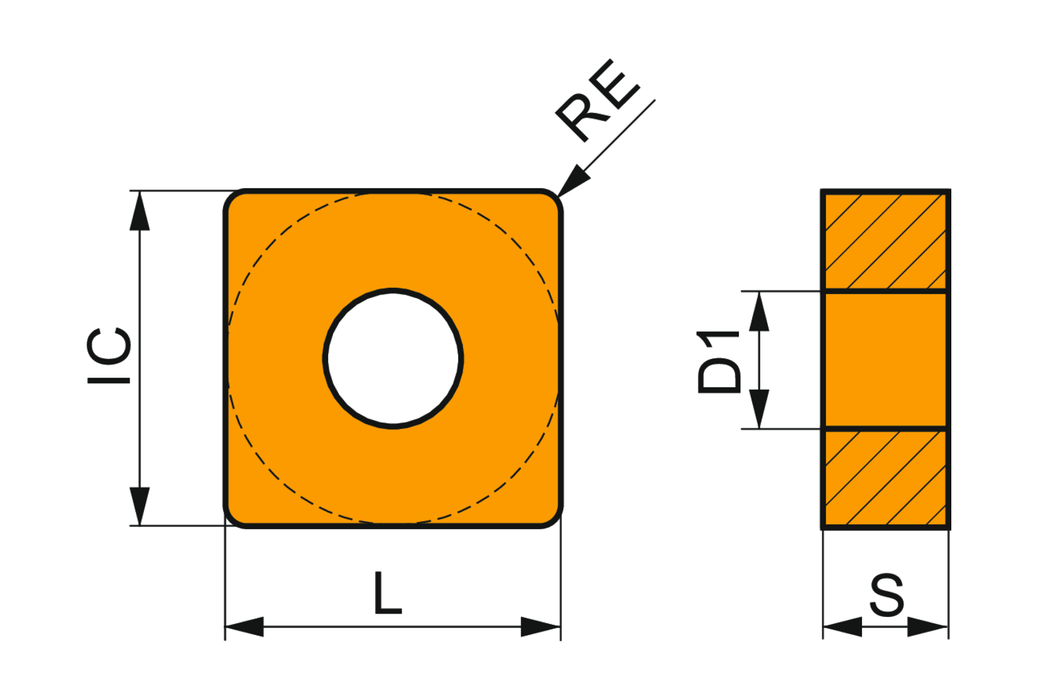

SNMG 322-M:T9425 — Line Drawing PDF Download
