SNMG 644-SM:T9425

SNMG 644-SM:T9425

SKU DOR8985693
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.76 - $30.76
$30.76
$30.76 - $30.76
$30.76

Sold in packs of: 10

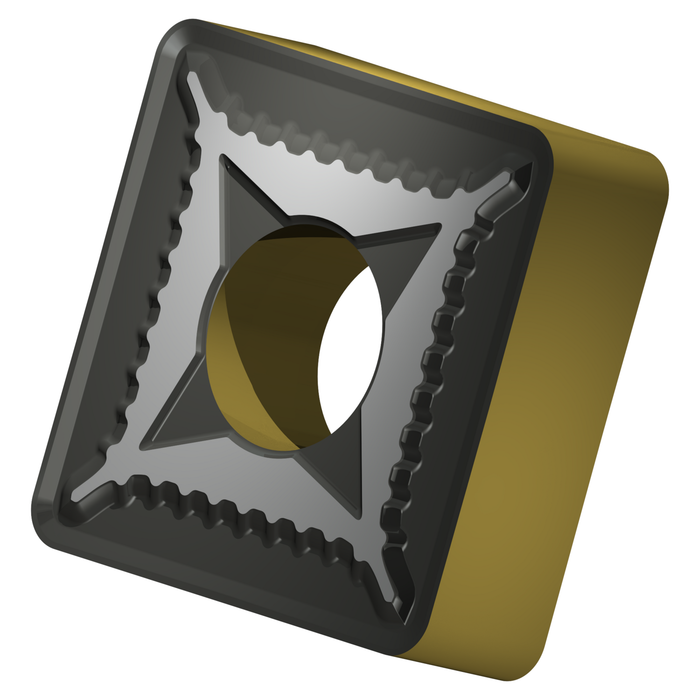

Double-sided Negative turning insert, S - square, size 19 with corner radius 1.6 mm. Combination of chipbreaker SM chip breaker is versatile and the first choice for medium machining of Steels and Super-alloys. It features slightly positive rake angle and stable, moderate T-land. It's also suitable for Stainless steels, Cast irons, and conditionally for Non-ferrous alloys and Hard materials. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMG 644-SM:T9425
GradeT9425
Chipbreaker (CBMD)SM
Product Number8985693
Product FamilySNMG

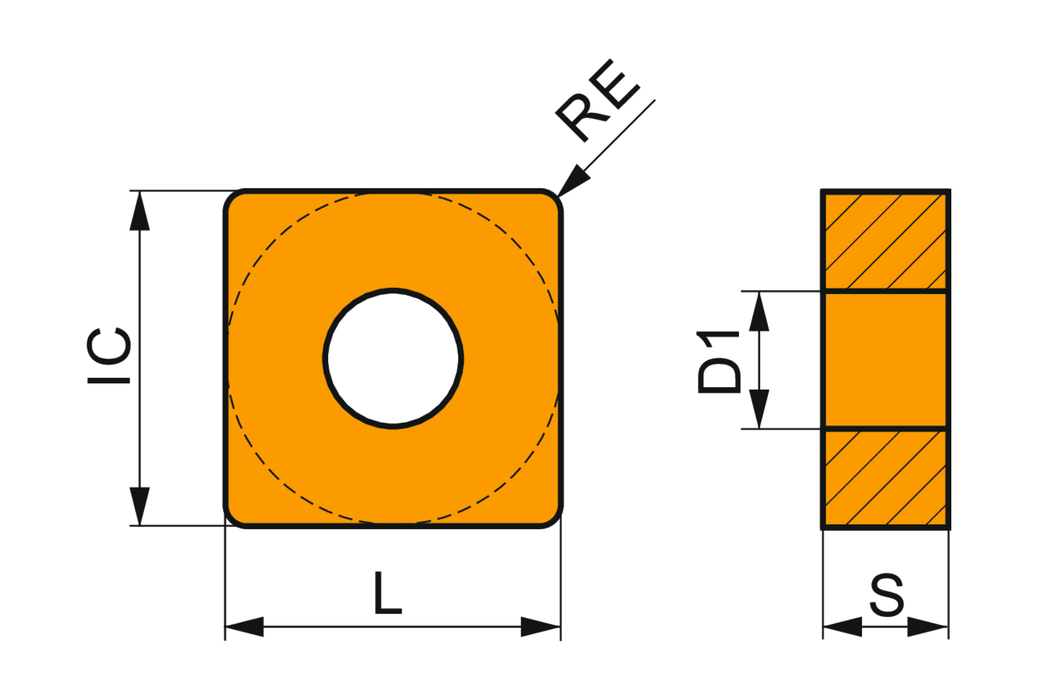

Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Tool DesignSN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985693
EAN3603604775519
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download
SNMG 644-SM:T9425 — Line Drawing PDF Download
