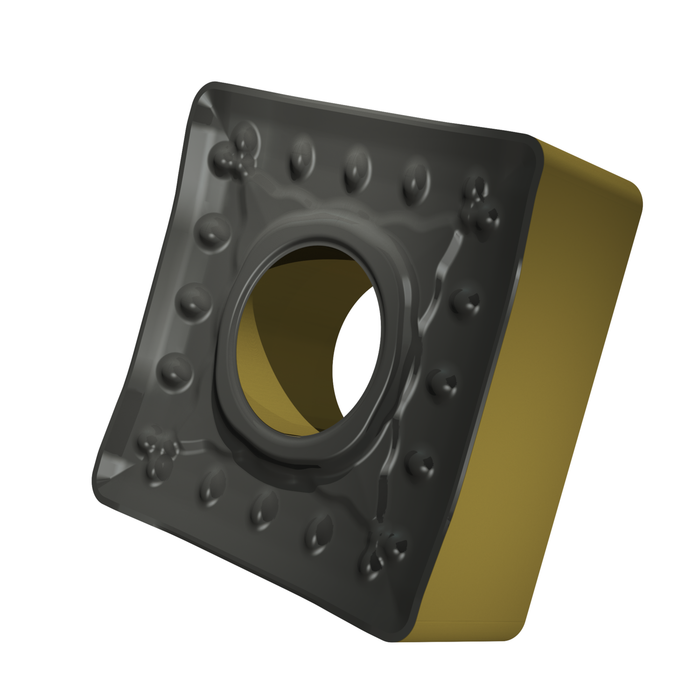

SNMM 432-OR:T9425

SNMM 432-OR:T9425

SKU DOR8985855
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.33 - $14.33
$14.33
$14.33 - $14.33
$14.33

Sold in packs of: 10
Single-sided Negative turning insert, S - square, size 12 with corner radius 0.8 mm. Combination of chipbreaker OR chip breaker is robust and the first choice for heavy roughing of Steels. It features positive rake angle and negative/stable, extra-wide double T-land. It's also suitable for Cast irons, and conditionally for Stainless steels and Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMM 432-OR:T9425
GradeT9425
Chipbreaker (CBMD)OR_
Product Number8985855
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Tool DesignSN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985855
EAN3603604776837
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download
SNMM 432-OR:T9425 — Line Drawing PDF Download
