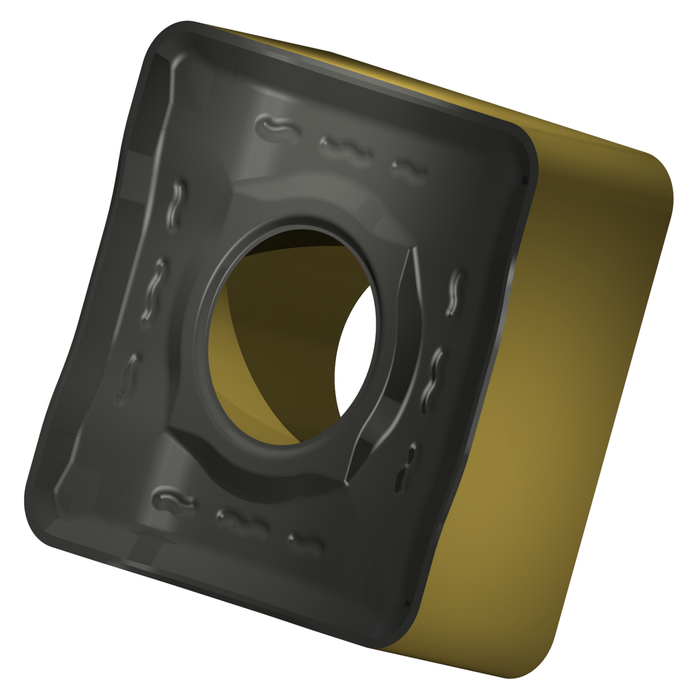

SNMM 544-NR2:T9425

SNMM 544-NR2:T9425

SKU DOR8985861
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.76 - $22.76
$22.76
$22.76 - $22.76
$22.76

Sold in packs of: 10

Single-sided Negative turning insert, S - square, size 15 with corner radius 1.6 mm. Combination of chipbreaker NR2 chip breaker is robust and the first choice for heavy roughing of Stainless steels. It features positive rake angle and negative/negative, extra-wide double T-land. It's also suitable for Steels, and conditionally for Cast irons and Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMM 544-NR2:T9425
GradeT9425
Chipbreaker (CBMD)NR2
Product Number8985861
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.875 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Tool DesignSN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985861
EAN3603604776899
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
S — High Temperature Alloys Possible use
File Type Download
SNMM 544-NR2:T9425 — Line Drawing PDF Download
