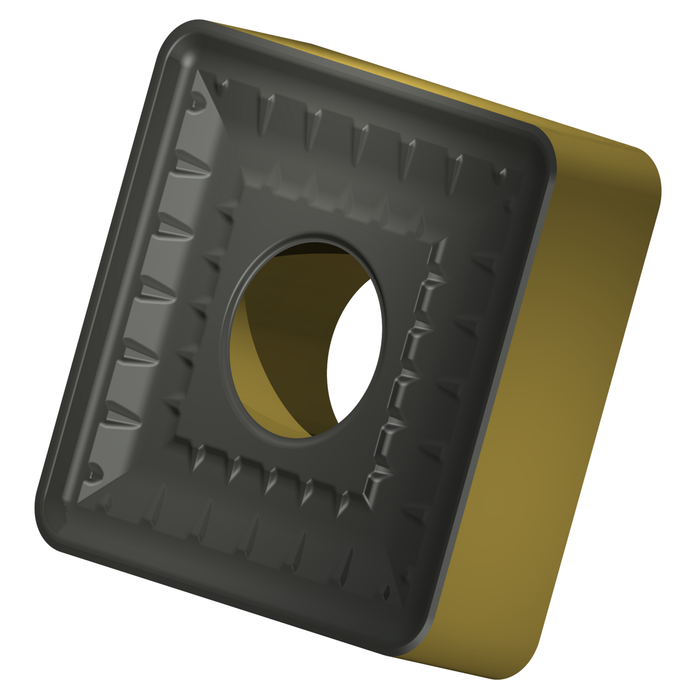

SNMM 856-923:T9425

SNMM 856-923:T9425

SKU DOR8985880
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.79 - $56.79
$56.79
$56.79 - $56.79
$56.79

Sold in packs of: 10

Double-sided Negative turning insert, S - square, size 25 with corner radius 2.4 mm. Combination of chipbreaker 923 chip breaker is robust and designed for heavy roughing of Stainless steels. It features positive rake angle and negative/stable, extra-wide double T-land. It's also conditionally suitable for Steels and Cast irons. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMM 856-923:T9425
GradeT9425
Chipbreaker (CBMD)923
Product Number8985880
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Tool DesignSN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985880
EAN3603604777087
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
S — High Temperature Alloys Possible use
File Type Download
SNMM 856-923:T9425 — Line Drawing PDF Download
