SPMR 422-48:T9425

SPMR 422-48:T9425

SKU DOR8986042
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.50 - $17.50
$17.50
$17.50 - $17.50
$17.50

Sold in packs of: 10

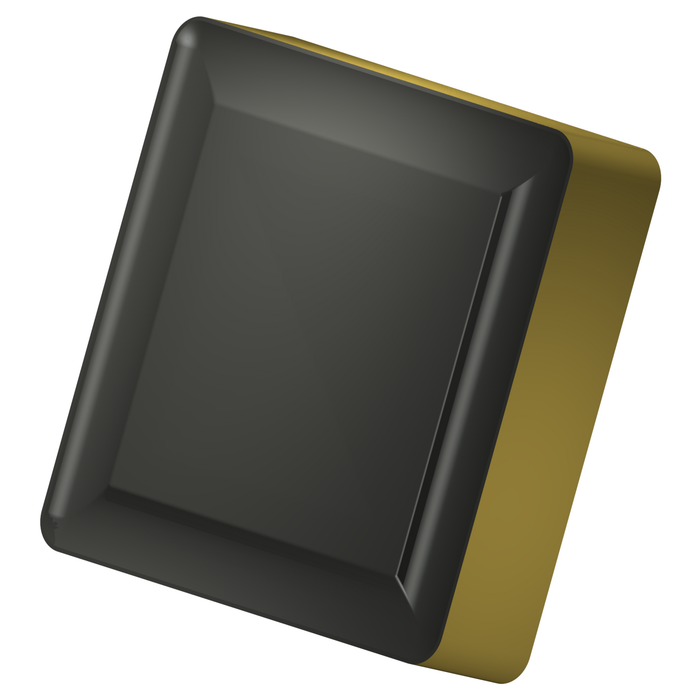

Single-sided Positive turning insert, S - square, size 12 with corner radius 0.8 mm. Combination of chipbreaker 48 geometry for finish to semi-rough machining, and continuous to interrupted cuts. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SPMR 422-48:T9425
GradeT9425
Chipbreaker (CBMD)48
Product Number8986042
Product FamilySPMR

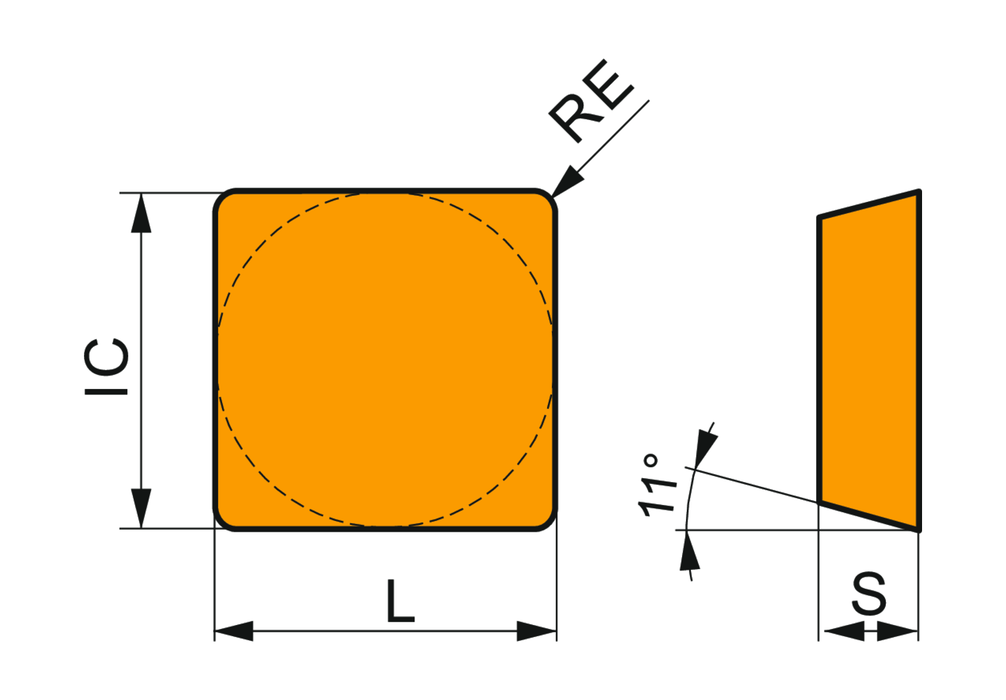

Insert Geometry
Insert DesignSPMR
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Tool DesignSP
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986042
EAN3603604778473
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
File Type Download
SPMR 422-48:T9425 — Line Drawing PDF Download
