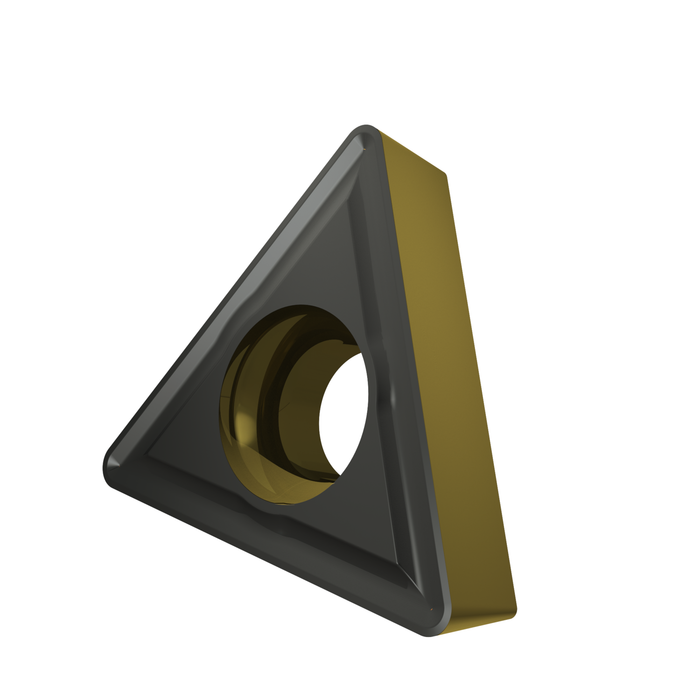

TCMT 32.52-RM3:T9425

TCMT 32.52-RM3:T9425

SKU DOR8986063
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.93 - $14.93
$14.93
$14.93 - $14.93
$14.93

Sold in packs of: 10
Single-sided Positive turning insert, T - triangular 60° included angle, size 16 with corner radius 0.8 mm. Combination of chipbreaker RM3 chip breaker is robust and designed for roughing of Steels and Cast irons. It features positive rake angle and negative, wide T-land. It's also conditionally suitable for Stainless steels and Hard materials. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TCMT 32.52-RM3:T9425
GradeT9425
Chipbreaker (CBMD)RM3
Product Number8986063
Product FamilyTCMT
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - triangular 60° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Tool DesignTC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986063
EAN3603604778688
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
File Type Download
TCMT 32.52-RM3:T9425 — Line Drawing PDF Download
