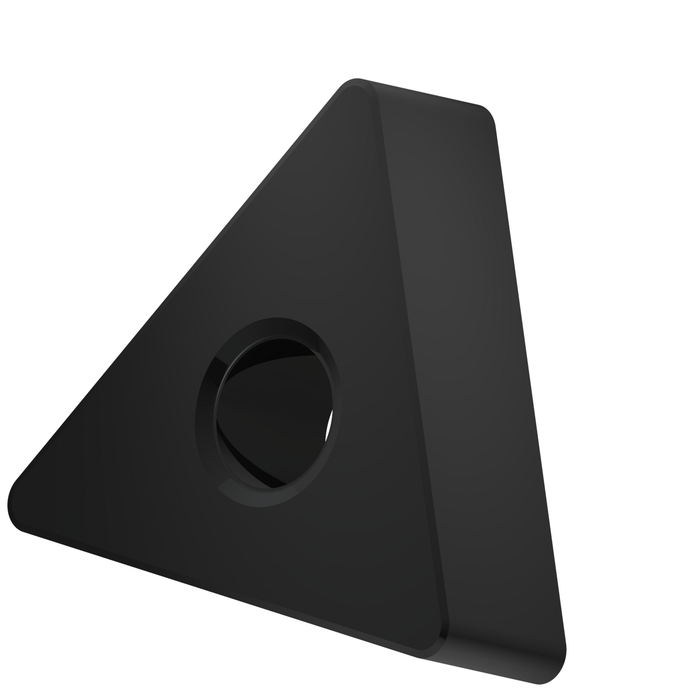

TNMA 332S:T5405

TNMA 332S:T5405

SKU DOR8984997
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.97 - $11.97
$11.97
$11.97 - $11.97
$11.97

Sold in packs of: 10

Double-sided Negative turning insert, T - triangular 60° included angle, size 16 with corner radius 0.8 mm. Combination of chipbreaker .NMA..S flat insert is designed for medium machining of Cast irons. It features neutral rake angle and negative, moderate T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNMA 332S:T5405
GradeT5405
Chipbreaker (CBMD)No chipbreaker
Product Number8984997
Product FamilyTNMA
Insert Geometry
Insert DesignTNMA
Insert Shape Code (SC)T - triangular 60° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Tool DesignTN
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8984997
EAN3603604774048
Material Group Suitability
K — Cast Iron Primary use
File Type Download
TNMA 332S:T5405 — Line Drawing PDF Download
