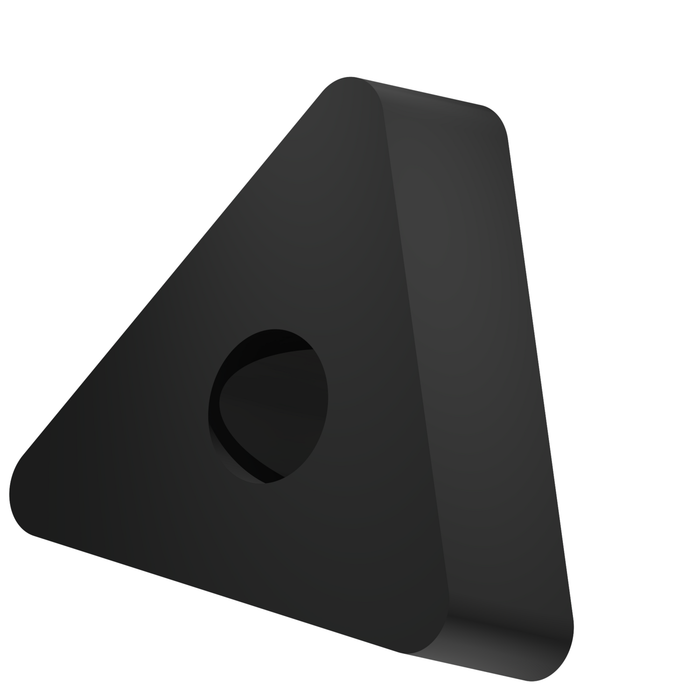

TNMA 333:T5405

TNMA 333:T5405

SKU DOR8984998
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.97 - $11.97
$11.97
$11.97 - $11.97
$11.97

Sold in packs of: 10

Double-sided Negative turning insert, T - triangular 60° included angle, size 16 with corner radius 1.2 mm. Combination of chipbreaker .NMA flat insert is designed for medium machining of Cast irons. It features neutral rake angle without T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNMA 333:T5405
GradeT5405
Chipbreaker (CBMD)No chipbreaker
Product Number8984998
Product FamilyTNMA
Insert Geometry
Insert DesignTNMA
Insert Shape Code (SC)T - triangular 60° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Tool DesignTN
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8984998
EAN3603604774055
Material Group Suitability
K — Cast Iron Primary use
File Type Download
TNMA 333:T5405 — Line Drawing PDF Download
