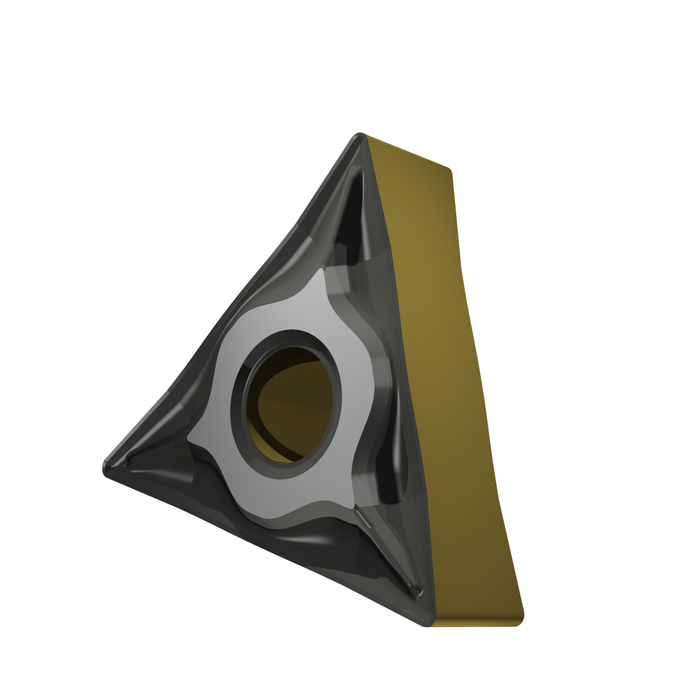

TNMG 331-NF:T9425

TNMG 331-NF:T9425

SKU DOR8985697
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.26 - $12.26
$12.26
$12.26 - $12.26
$12.26

Sold in packs of: 10

Double-sided Negative turning insert, T - triangular 60° included angle, size 16 with corner radius 0.4 mm. Combination of chipbreaker NF chip breaker is sharp and the first choice for fine-finishing of Steels, Stainless steels. It features highly positive rake angle and highly positive, narrow T-land. It's also conditionally suitable for Cast irons and Non-ferrous alloys and Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNMG 331-NF:T9425
GradeT9425
Chipbreaker (CBMD)NF
Product Number8985697
Product FamilyTNMG

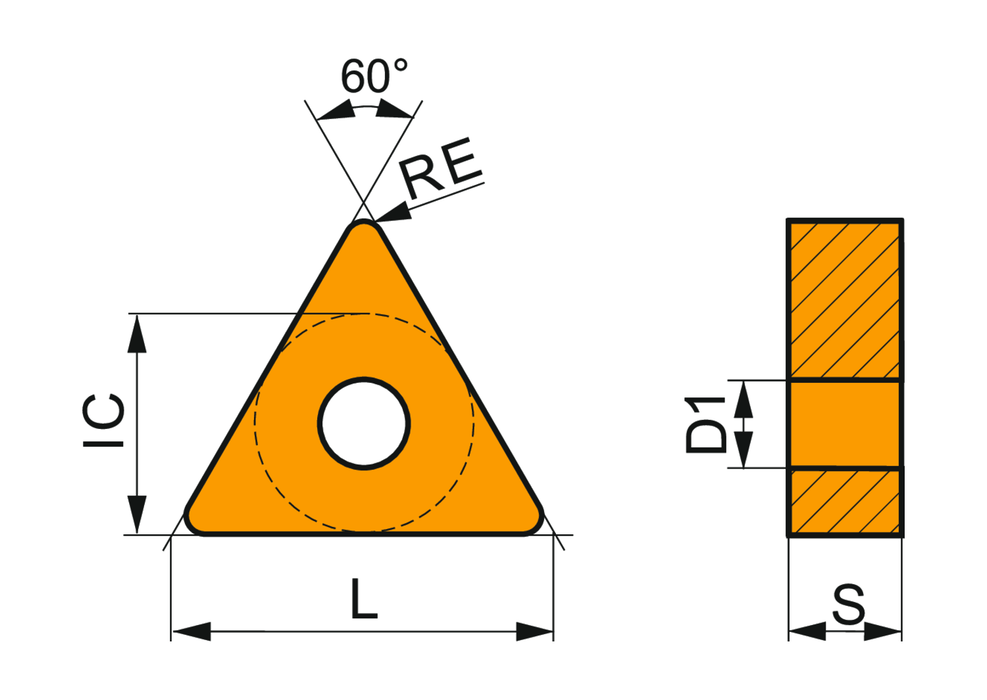

Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangular 60° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Tool DesignTN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985697
EAN3603604775557
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
S — High Temperature Alloys Possible use
File Type Download
TNMG 331-NF:T9425 — Line Drawing PDF Download
