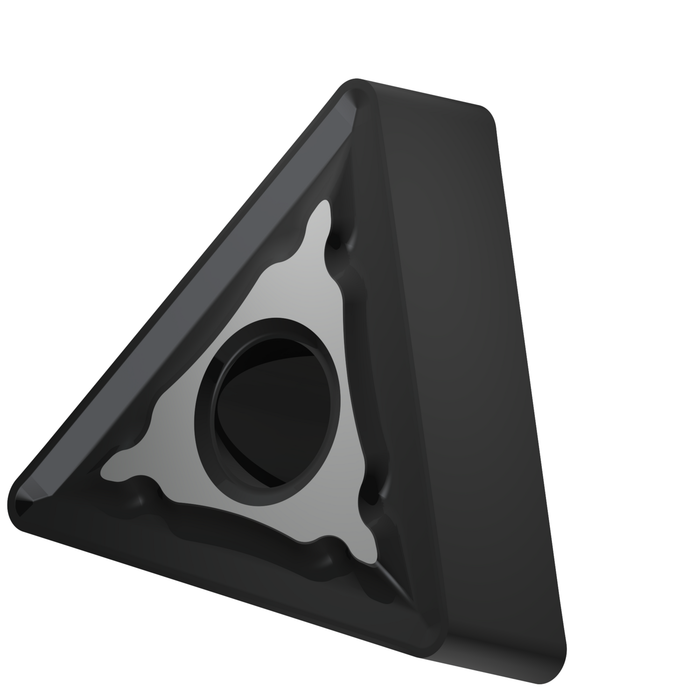

TNMG 332-KM:T5405

TNMG 332-KM:T5405

SKU DOR8985002
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.97 - $11.97
$11.97
$11.97 - $11.97
$11.97

Sold in packs of: 10

Double-sided Negative turning insert, T - triangular 60° included angle, size 16 with corner radius 0.8 mm. Combination of chipbreaker KM chip breaker is versatile and the first choice for medium machining of Cast irons. It features slightly positive rake angle and stable, wide T-land. It's also conditionally suitable for Steels and Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNMG 332-KM:T5405
GradeT5405
Chipbreaker (CBMD)KM
Product Number8985002
Product FamilyTNMG
Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangular 60° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Tool DesignTN
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8985002
EAN3603604774093
Material Group Suitability
P — Steel and Cast Steel Possible use
K — Cast Iron Primary use
File Type Download
TNMG 332-KM:T5405 — Line Drawing PDF Download
