TNMG 433-SM:T9425

TNMG 433-SM:T9425

SKU DOR8985725
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.43 - $16.43
$16.43
$16.43 - $16.43
$16.43

Sold in packs of: 10

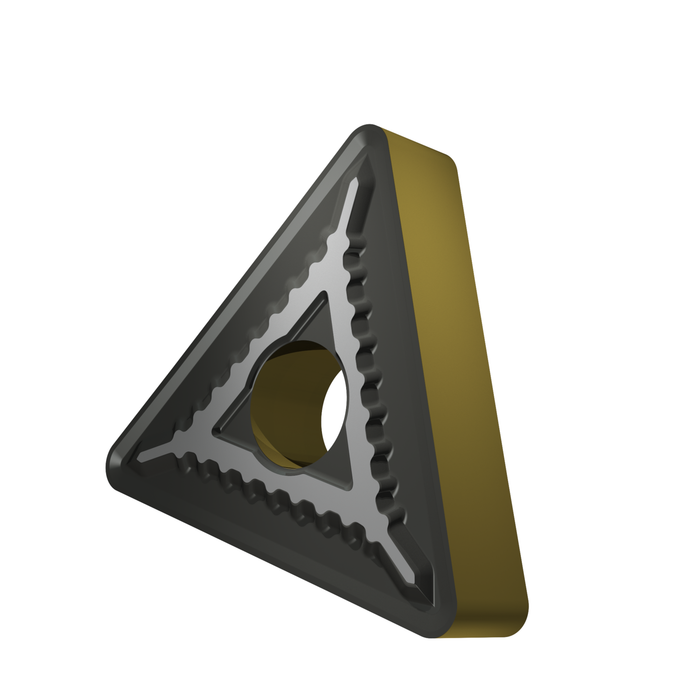

Double-sided Negative turning insert, T - triangular 60° included angle, size 22 with corner radius 1.2 mm. Combination of chipbreaker SM chip breaker is versatile and the first choice for medium machining of Steels and Super-alloys. It features slightly positive rake angle and stable, moderate T-land. It's also suitable for Stainless steels, Cast irons, and conditionally for Non-ferrous alloys and Hard materials. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), K - Cast Iron (castings of iron and carbon

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNMG 433-SM:T9425
GradeT9425
Chipbreaker (CBMD)SM
Product Number8985725
Product FamilyTNMG

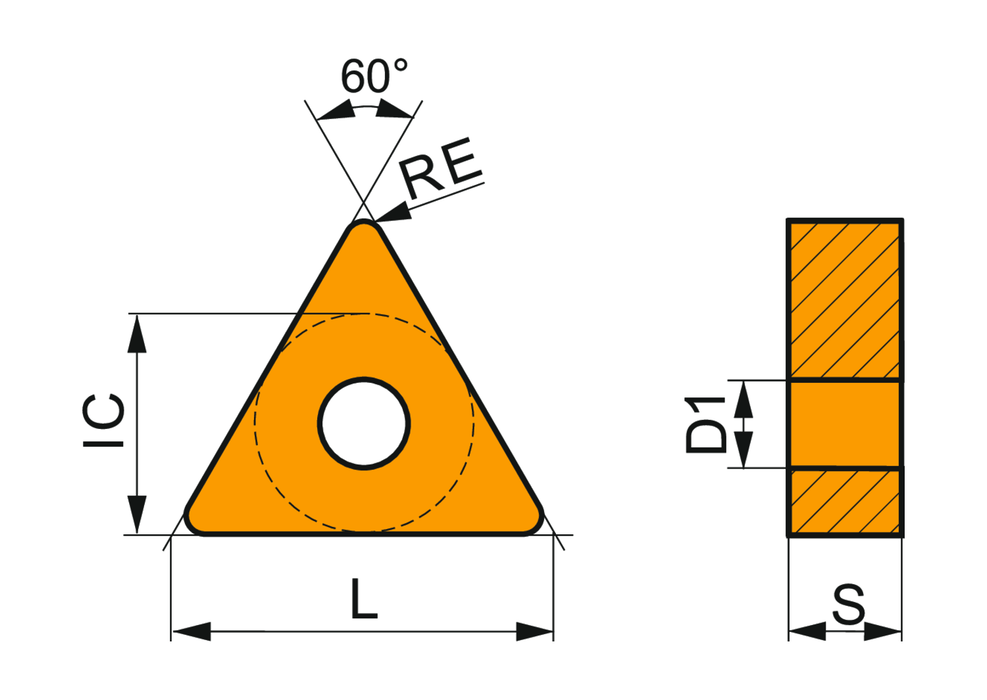

Insert Geometry
Insert DesignTNMG
Insert Shape Code (SC)T - triangular 60° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Tool DesignTN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985725
EAN3603604775830
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download
TNMG 433-SM:T9425 — Line Drawing PDF Download
