TPMR 322-61:T9425

TPMR 322-61:T9425

SKU DOR8986070
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.29 - $15.29
$15.29
$15.29 - $15.29
$15.29

Sold in packs of: 10

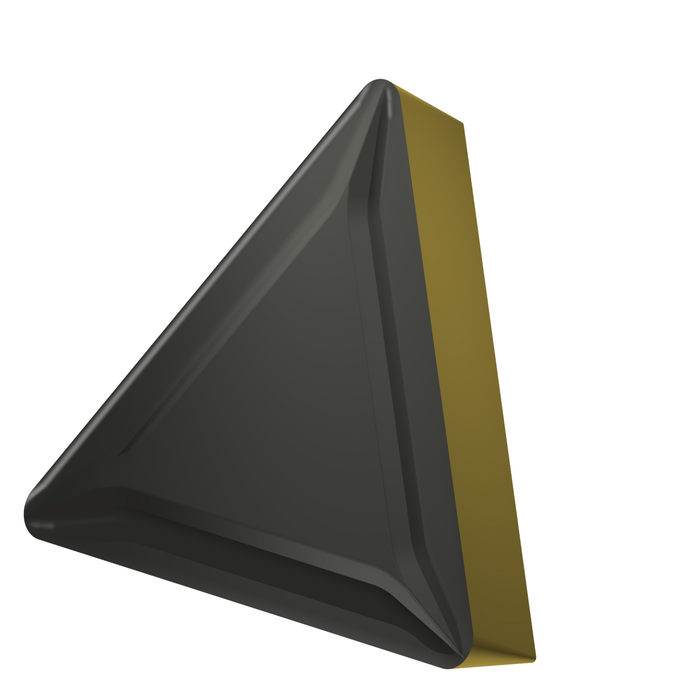

Single-sided Positive turning insert, T - triangular 60° included angle, size 16 with corner radius 0.8 mm. Combination of chipbreaker 61 geometry for finish machining with moderate feeds and depths of cut, and continuous to interrupted cuts. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TPMR 322-61:T9425
GradeT9425
Chipbreaker (CBMD)61
Product Number8986070
Product FamilyTPMR

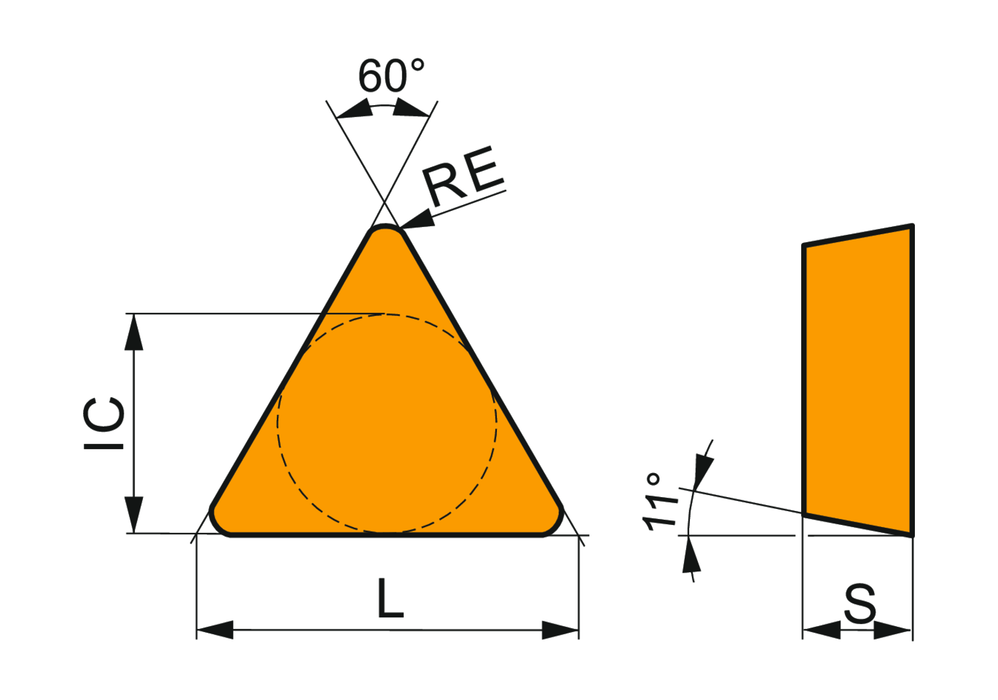

Insert Geometry
Insert DesignTPMR
Insert Shape Code (SC)T - triangular 60° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.209"
Depth of Cut Max — mm (APMX)5.3 mm
Tool Information
Tool DesignTP
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986070
EAN3603604778756
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
File Type Download
TPMR 322-61:T9425 — Line Drawing PDF Download
