VBMT 331-FF2:T9425

VBMT 331-FF2:T9425

SKU DOR8986077
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.29 - $23.29
$23.29
$23.29 - $23.29
$23.29

Sold in packs of: 10

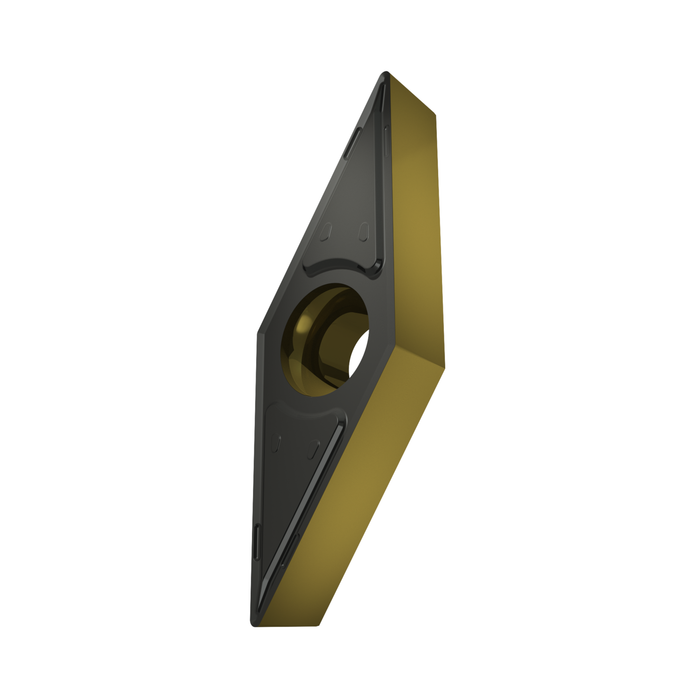

Single-sided Positive turning insert, V - rhombic 35° included angle, size 16 with corner radius 0.4 mm. Combination of chipbreaker FF2 chip breaker is sharp and the first choice for fine-finishing of Steels. It features slightly positive rake angle without T-land. It's also suitable for Cast irons. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VBMT 331-FF2:T9425
GradeT9425
Chipbreaker (CBMD)FF2
Product Number8986077
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - rhombic 35° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Tool DesignVB
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986077
EAN3603604778824
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Primary use
File Type Download

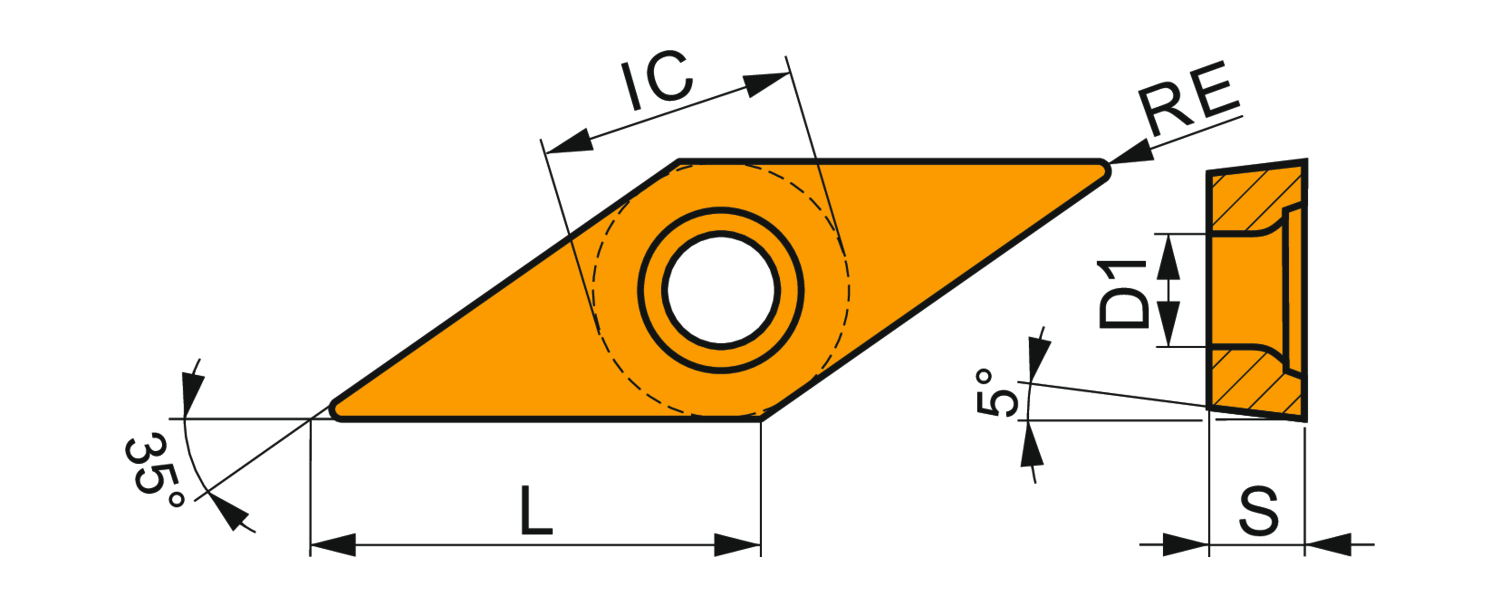

VBMT 331-FF2:T9425 — Line Drawing PDF Download
