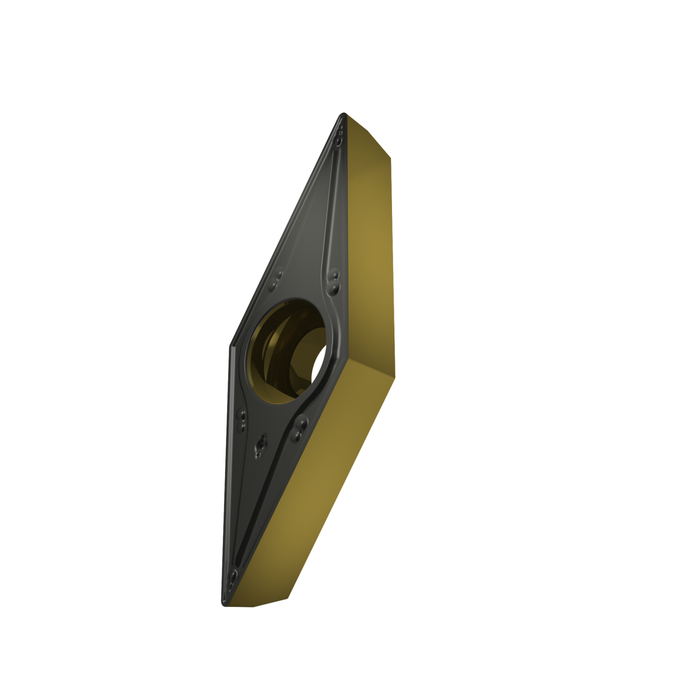

VBMT 331-RM:T9425

VBMT 331-RM:T9425

SKU DOR8986080
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.29 - $23.29
$23.29
$23.29 - $23.29
$23.29

Sold in packs of: 10
Single-sided Positive turning insert, V - rhombic 35° included angle, size 16 with corner radius 0.4 mm. Combination of chipbreaker RM chip breaker is robust and the first choice for roughing of Steels and Cast irons. It features positive rake angle and stable, wide T-land. It's also suitable for Stainless steels, and conditionally for Super-alloys and Hard materials. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VBMT 331-RM:T9425
GradeT9425
Chipbreaker (CBMD)RM
Product Number8986080
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - rhombic 35° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.142"
Depth of Cut Max — mm (APMX)3.6 mm
Tool Information
Tool DesignVB
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986080
EAN3603604778855
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download

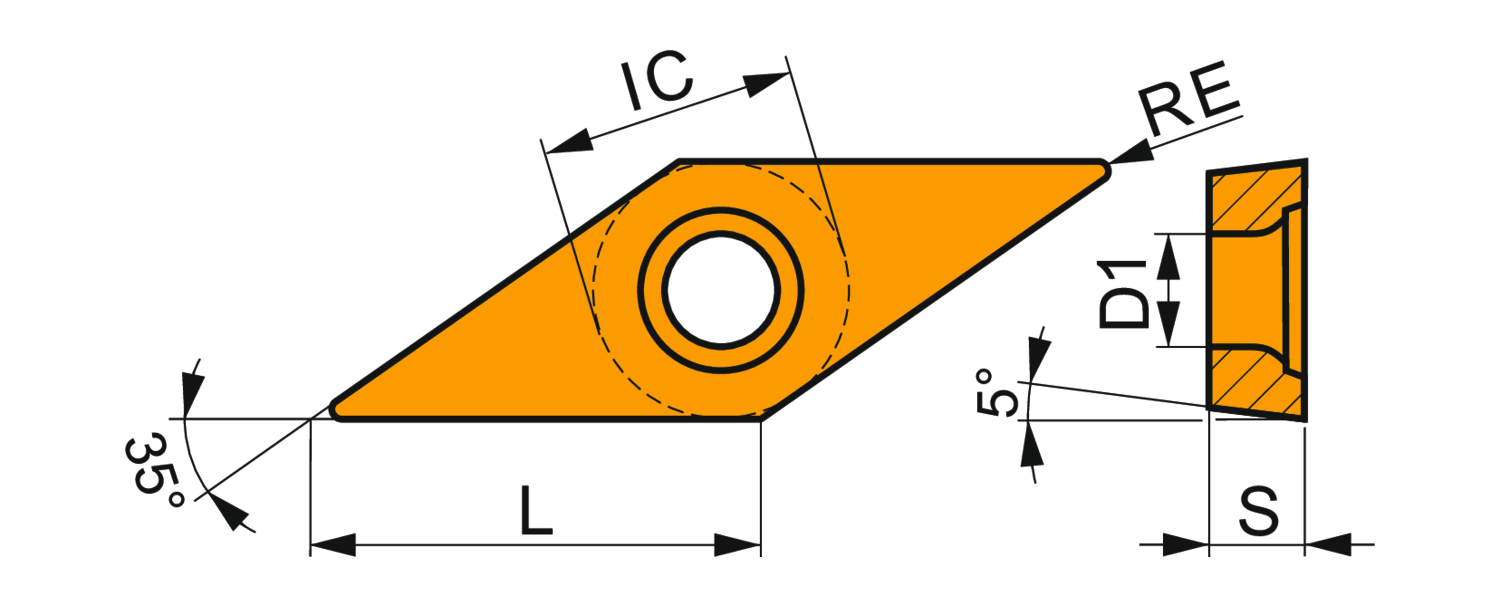

VBMT 331-RM:T9425 — Line Drawing PDF Download
