VCGT 2.520.5-FF2:T9425

VCGT 2.520.5-FF2:T9425

SKU DOR8986089
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.83 - $21.83
$21.83
$21.83 - $21.83
$21.83

Sold in packs of: 10

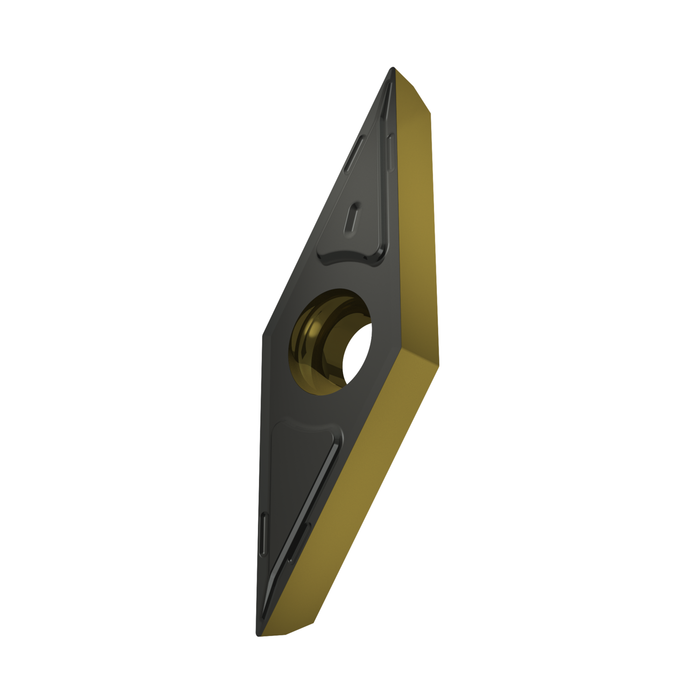

Single-sided Positive turning insert, V - rhombic 35° included angle, size 13 with corner radius 0.2 mm. Combination of chipbreaker FF2 chip breaker is sharp and the first choice for fine-finishing of Steels. It features slightly positive rake angle without T-land. It's also suitable for Cast irons. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGT 2.520.5-FF2:T9425
GradeT9425
Chipbreaker (CBMD)FF2
Product Number8986089
Product FamilyVCGT

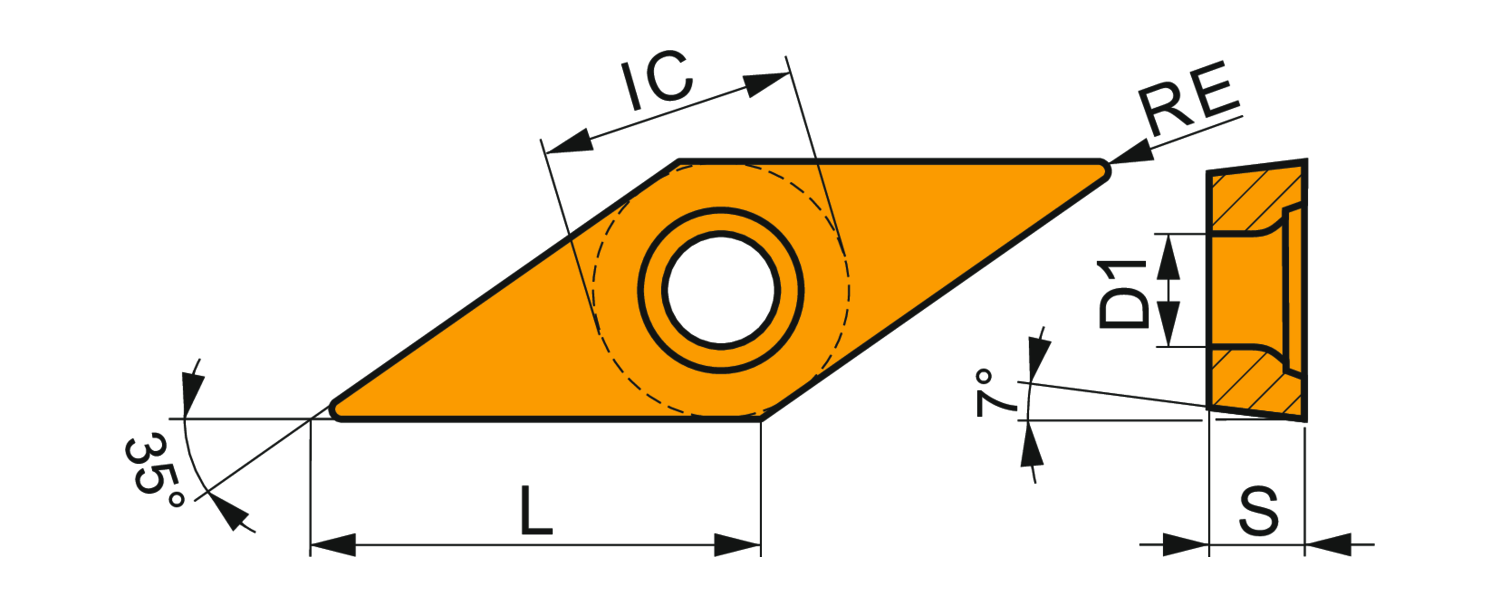

Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - rhombic 35° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Tool DesignVC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986089
EAN3603604778947
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Primary use
File Type Download
VCGT 2.520.5-FF2:T9425 — Line Drawing PDF Download
