VCGT 2.522-NF2:T9425

VCGT 2.522-NF2:T9425

SKU DOR8986095
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.64 - $20.64
$20.64
$20.64 - $20.64
$20.64

Sold in packs of: 10

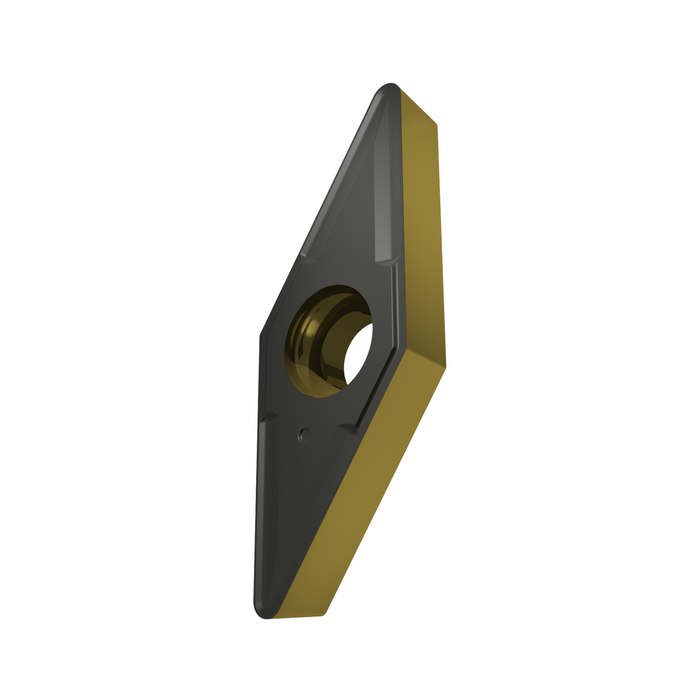

Single-sided Positive turning insert, V - rhombic 35° included angle, size 13 with corner radius 0.8 mm. Combination of chipbreaker NF2 chip breaker is sharp and the first choice for finishing of Stainless steels. It features positive rake angle without T-land. It's also suitable for Super-alloys, and conditionally for Steels, Cast irons and Non-ferrous alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGT 2.522-NF2:T9425
GradeT9425
Chipbreaker (CBMD)NF2
Product Number8986095
Product FamilyVCGT

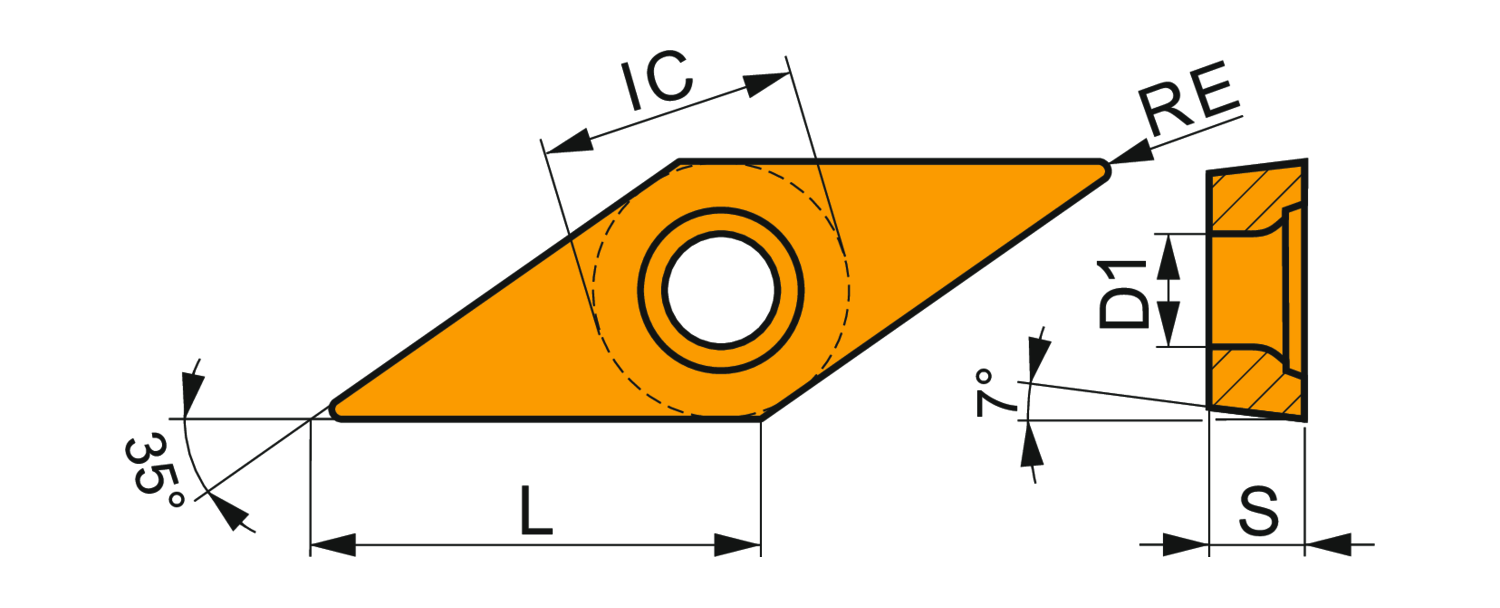

Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - rhombic 35° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Tool DesignVC
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8986095
EAN3603604779005
Material Group Suitability
P — Steel and Cast Steel Possible use
M — Stainless Steel Primary use
K — Cast Iron Possible use
S — High Temperature Alloys Possible use
File Type Download
VCGT 2.522-NF2:T9425 — Line Drawing PDF Download
