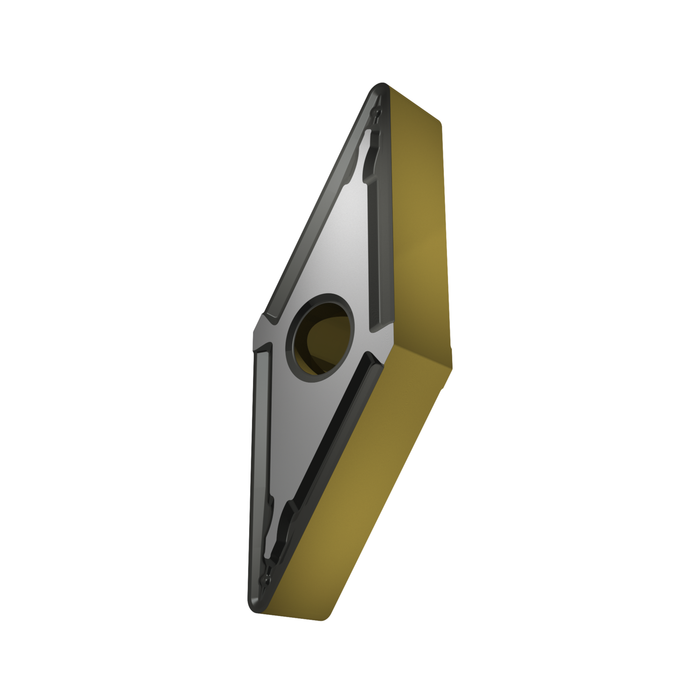

VNMG 332-ML:T9415

VNMG 332-ML:T9415

SKU DOR8984903
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.79 - $20.79
$20.79
$20.79 - $20.79
$20.79

Sold in packs of: 10

Double-sided Negative turning insert, V - rhombic 35° included angle, size 16 with corner radius 0.8 mm. Combination of chipbreaker ML chip breaker is versatile and designed for low depth of cut and medium machining of Steels. It features positive rake angle and stable, narrow T-land. It's also suitable for Cast irons. and MT-CVD-coated, functionally graded substrate T9415, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VNMG 332-ML:T9415
GradeT9415
Chipbreaker (CBMD)ML
Product Number8984903
Product FamilyVNMG

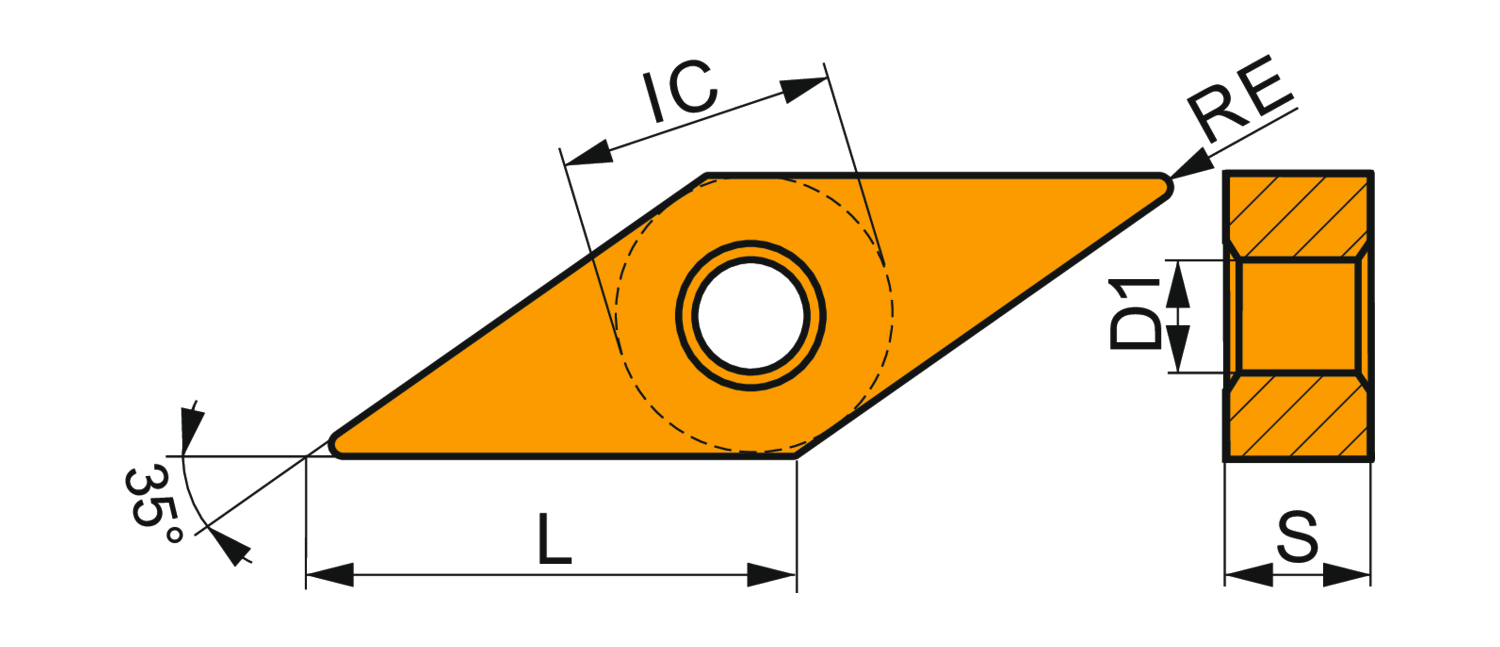

Insert Geometry
Insert DesignVNMG
Insert Shape Code (SC)V - rhombic 35° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Tool DesignVN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8984903
EAN3603604772204
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Possible use
File Type Download
VNMG 332-ML:T9415 — Line Drawing PDF Download
