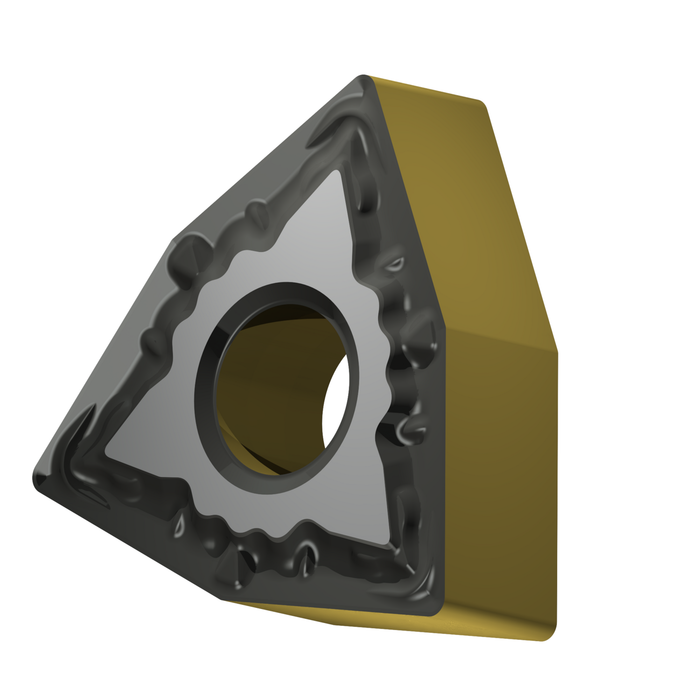

WNMG 32.51-FM:T9425

WNMG 32.51-FM:T9425

SKU DOR8985757
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.93 - $10.93
$10.93
$10.93 - $10.93
$10.93

Sold in packs of: 10
Double-sided Negative turning insert, W - trigon, size 6 with corner radius 0.4 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels and Cast irons. It features slightly positive rake angle and positive, narrow T-land. It's also conditionally suitable for Stainless steels and Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 32.51-FM:T9425
GradeT9425
Chipbreaker (CBMD)FM
Product Number8985757
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Tool DesignWN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985757
EAN3603604776158
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download
WNMG 32.51-FM:T9425 — Line Drawing PDF Download
