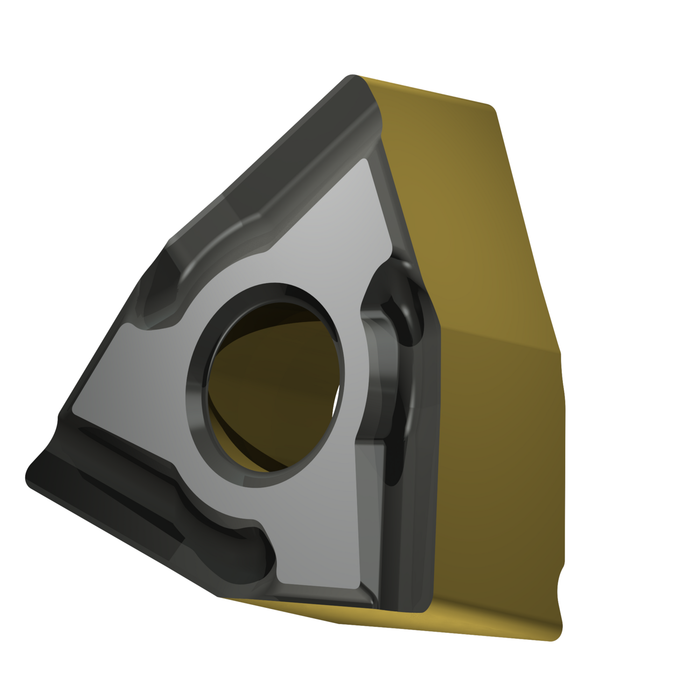

WNMG 331R-SI:T9425

WNMG 331R-SI:T9425

SKU DOR8985745
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.00 - $12.00
$12.00
$12.00 - $12.00
$12.00

Sold in packs of: 10

Double-sided Negative turning insert, W - trigon, size 6 with corner radius 0.4 mm. Combination of chipbreaker SI chip breaker is sharp and designed for medium machining of Steels, Stainless steels. It features positive rake angle without T-land. It's also conditionally suitable for Non-ferrous alloys and Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 331R-SI:T9425
GradeT9425
Chipbreaker (CBMD)SI
Product Number8985745
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.165"
Depth of Cut Max — mm (APMX)4.2 mm
Tool Information
Tool DesignWN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985745
EAN3603604776035
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
S — High Temperature Alloys Possible use
File Type Download
WNMG 331R-SI:T9425 — Line Drawing PDF Download
