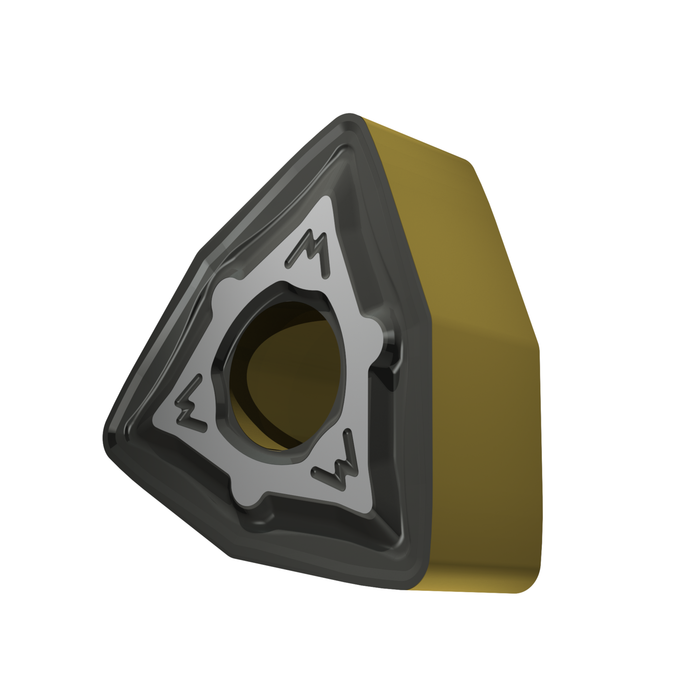

WNMG 332W-M:T9425

WNMG 332W-M:T9425

SKU DOR8985753
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.29 - $13.29
$13.29
$13.29 - $13.29
$13.29

Sold in packs of: 10

Double-sided Negative turning insert, W - trigon, size 6 with corner radius 0.8 mm. Combination of chipbreaker W-M chip breaker has wiper edge and is designed for finishing of Steels. It features positive rake angle and positive, moderate T-land. It's also conditionally suitable for Cast irons. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 332W-M:T9425
GradeT9425
Chipbreaker (CBMD)W-M
Product Number8985753
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Tool DesignWN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985753
EAN3603604776110
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Possible use
File Type Download
WNMG 332W-M:T9425 — Line Drawing PDF Download
