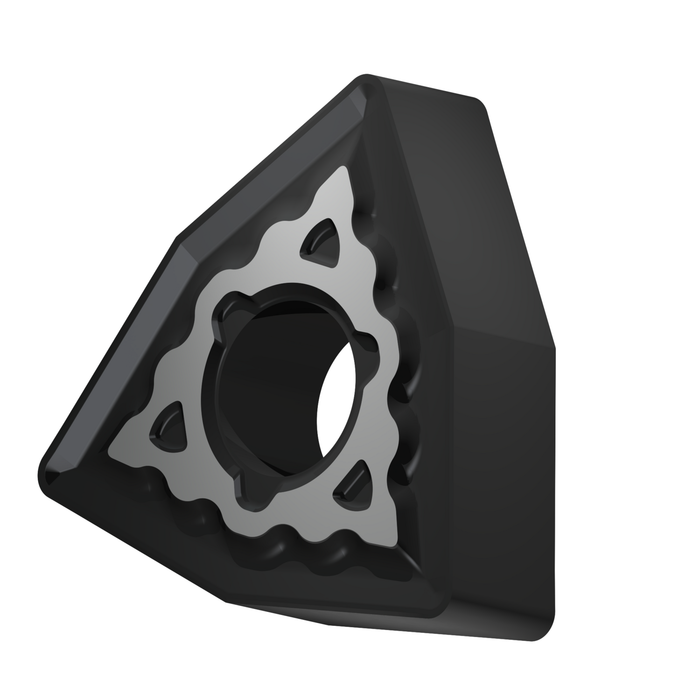

WNMG 432-KM:T5405

WNMG 432-KM:T5405

SKU DOR8985012
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 - $14.21
$14.21
$14.21 - $14.21
$14.21

Sold in packs of: 10

Double-sided Negative turning insert, W - trigon, size 8 with corner radius 0.8 mm. Combination of chipbreaker KM chip breaker is versatile and the first choice for medium machining of Cast irons. It features slightly positive rake angle and stable, wide T-land. It's also conditionally suitable for Steels and Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 432-KM:T5405
GradeT5405
Chipbreaker (CBMD)KM
Product Number8985012
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Tool DesignWN
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8985012
EAN3603604774192
Material Group Suitability
P — Steel and Cast Steel Possible use
K — Cast Iron Primary use
File Type Download
WNMG 432-KM:T5405 — Line Drawing PDF Download
