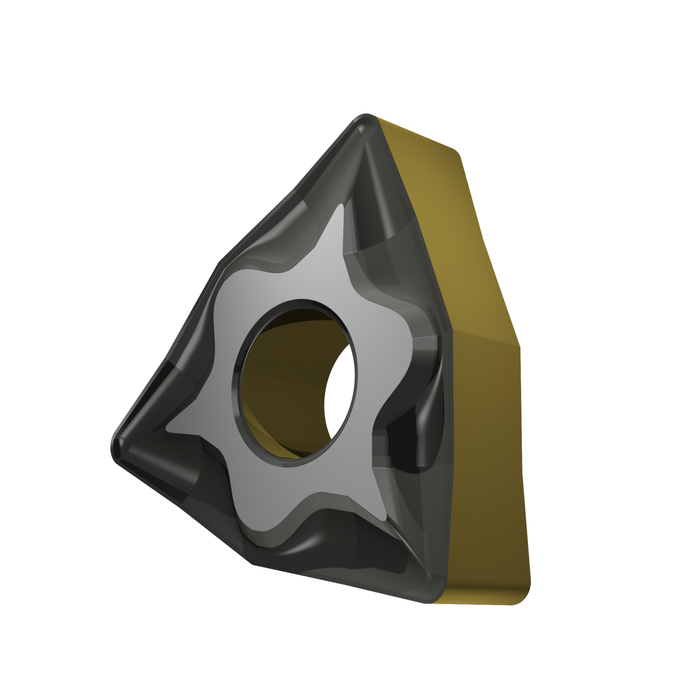

WNMG 432-NF:T9425

WNMG 432-NF:T9425

SKU DOR8985768
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.54 - $14.54
$14.54
$14.54 - $14.54
$14.54

Sold in packs of: 10

Double-sided Negative turning insert, W - trigon, size 8 with corner radius 0.8 mm. Combination of chipbreaker NF chip breaker is sharp and the first choice for fine-finishing of Steels, Stainless steels. It features highly positive rake angle and highly positive, narrow T-land. It's also conditionally suitable for Cast irons and Non-ferrous alloys and Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 432-NF:T9425
GradeT9425
Chipbreaker (CBMD)NF
Product Number8985768
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigon
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Tool DesignWN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985768
EAN3603604776264
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
S — High Temperature Alloys Possible use
File Type Download
WNMG 432-NF:T9425 — Line Drawing PDF Download
