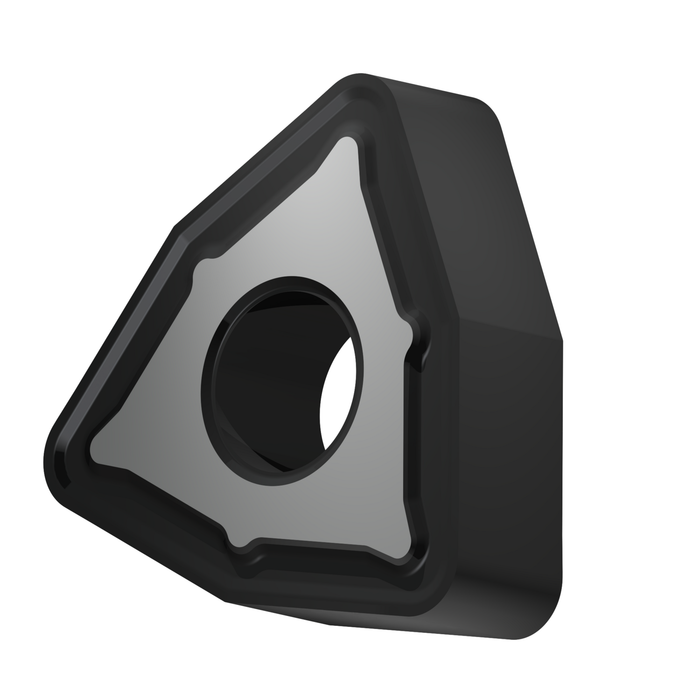

WNMG 434-KR:T5405

WNMG 434-KR:T5405

SKU DOR8985016
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.21 - $14.21
$14.21
$14.21 - $14.21
$14.21

Sold in packs of: 10

Double-sided Negative turning insert, W - trigon, size 8 with corner radius 1.6 mm. Combination of chipbreaker KR chip breaker is robust and the first choice for roughing of Cast irons. It features slightly positive rake angle and , wide T-land. It's also suitable for Steels, and conditionally for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMG 434-KR:T5405
GradeT5405
Chipbreaker (CBMD)KR
Product Number8985016
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigon
Insert Geometry
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Tool DesignWN
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8985016
EAN3603604774239
Material Group Suitability
P — Steel and Cast Steel Possible use
K — Cast Iron Primary use
File Type Download

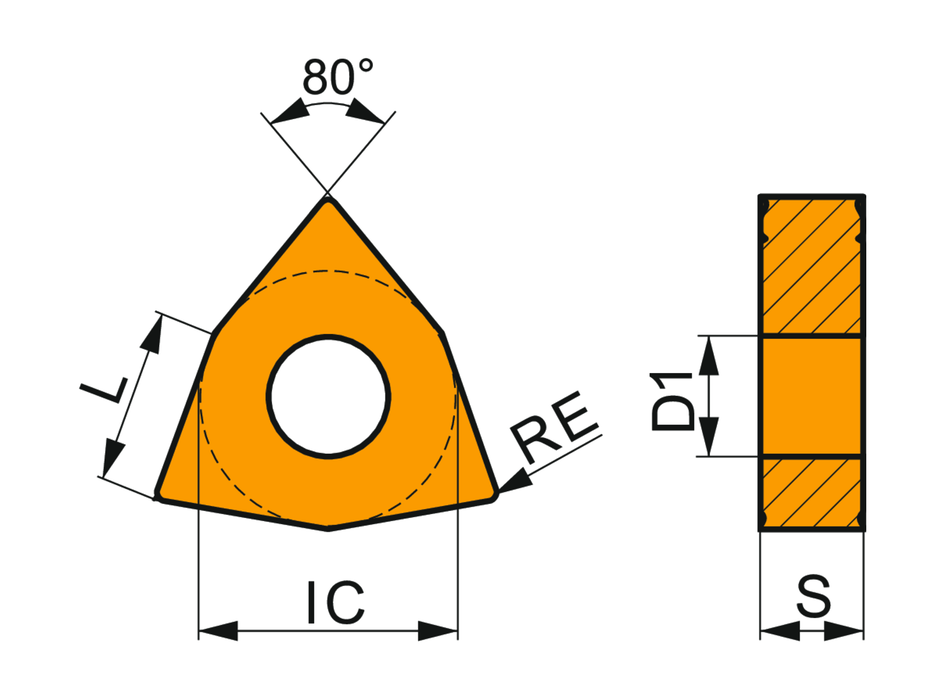

WNMG 434-KR:T5405 — Line Drawing PDF Download
