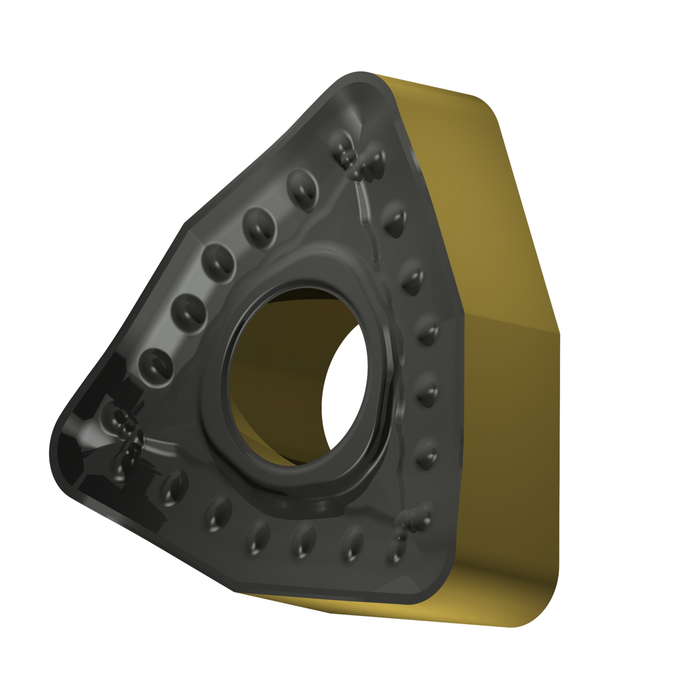

WNMM 434-OR:T9425

WNMM 434-OR:T9425

SKU DOR8985903
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.54 - $14.54
$14.54
$14.54 - $14.54
$14.54

Sold in packs of: 10
Single-sided Negative turning insert, W - trigon, size 8 with corner radius 1.6 mm. Combination of chipbreaker OR chip breaker is robust and the first choice for heavy roughing of Steels. It features positive rake angle and negative/stable, extra-wide double T-land. It's also suitable for Cast irons, and conditionally for Stainless steels and Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMM 434-OR:T9425
GradeT9425
Chipbreaker (CBMD)OR_
Product Number8985903
Product FamilyWNMM
Insert Geometry
Insert DesignWNMM
Insert Shape Code (SC)W - trigon

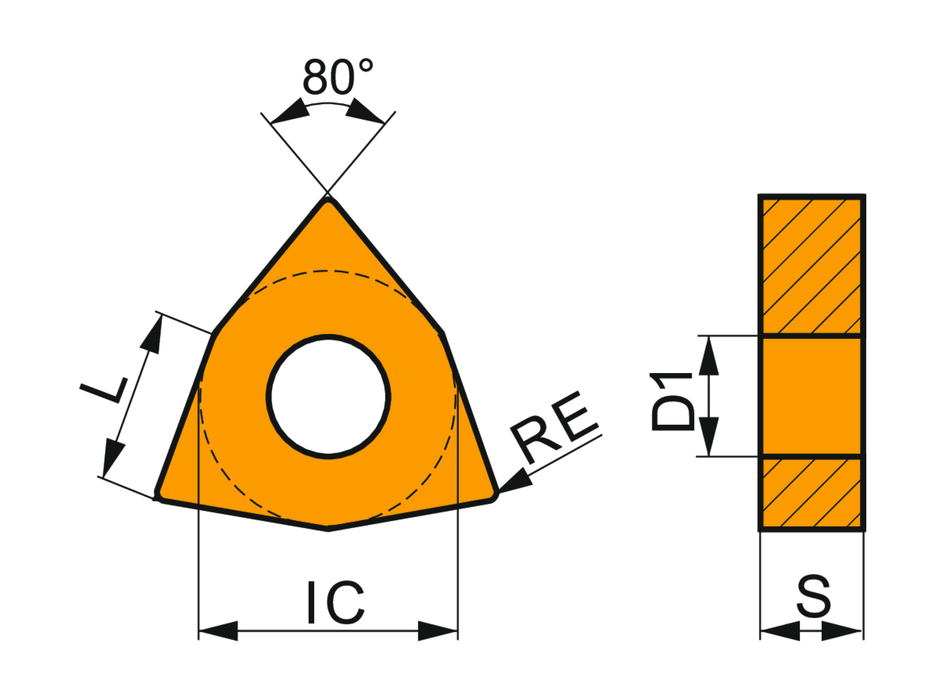

Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.22"
Depth of Cut Max — mm (APMX)5.6 mm
Tool Information
Tool DesignWN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985903
EAN3603604777315
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download
WNMM 434-OR:T9425 — Line Drawing PDF Download
